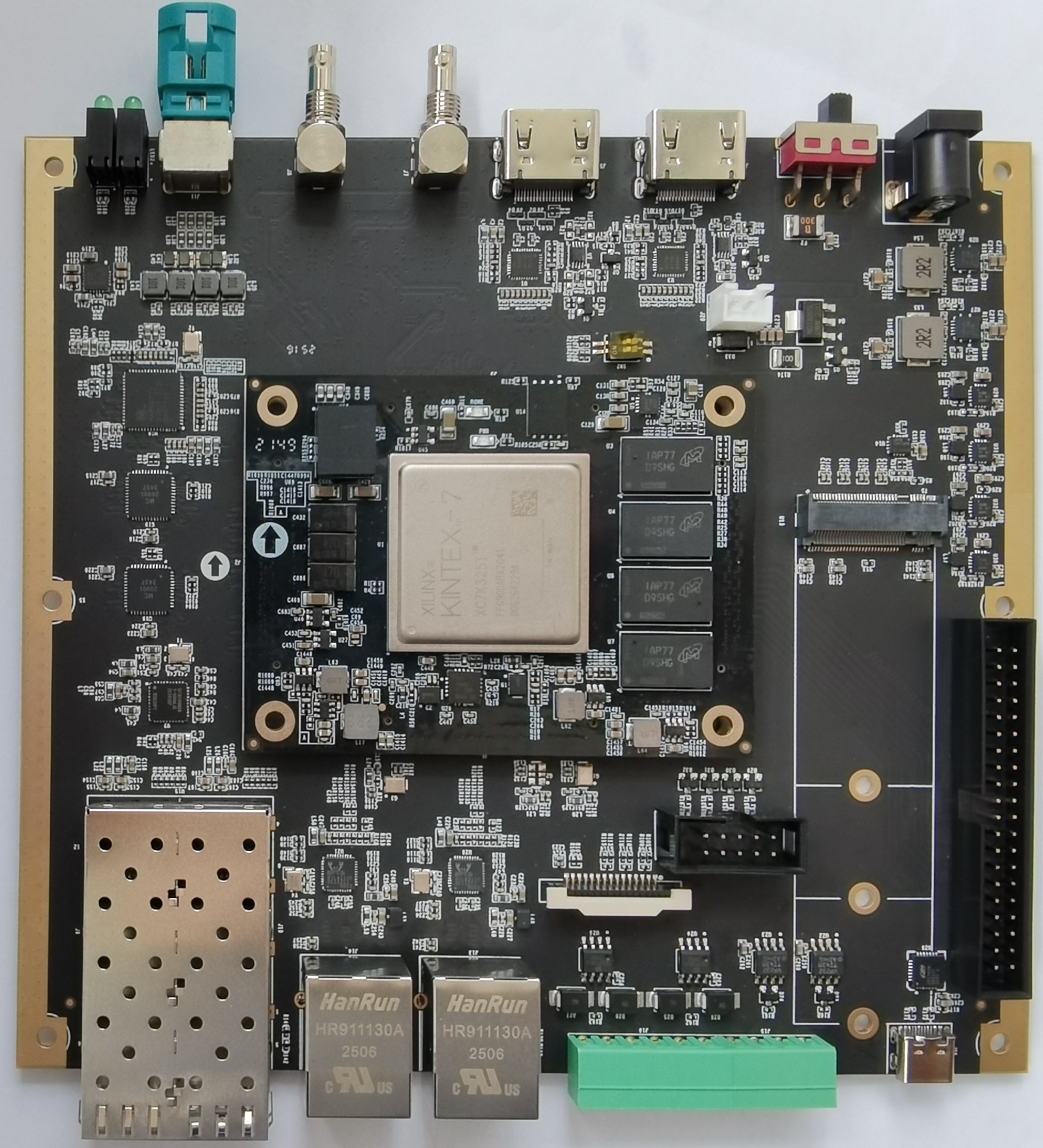

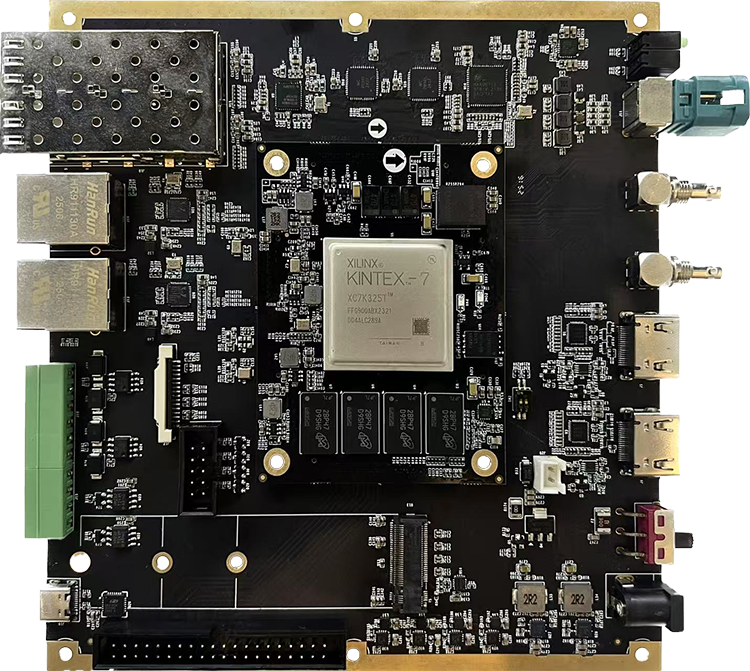

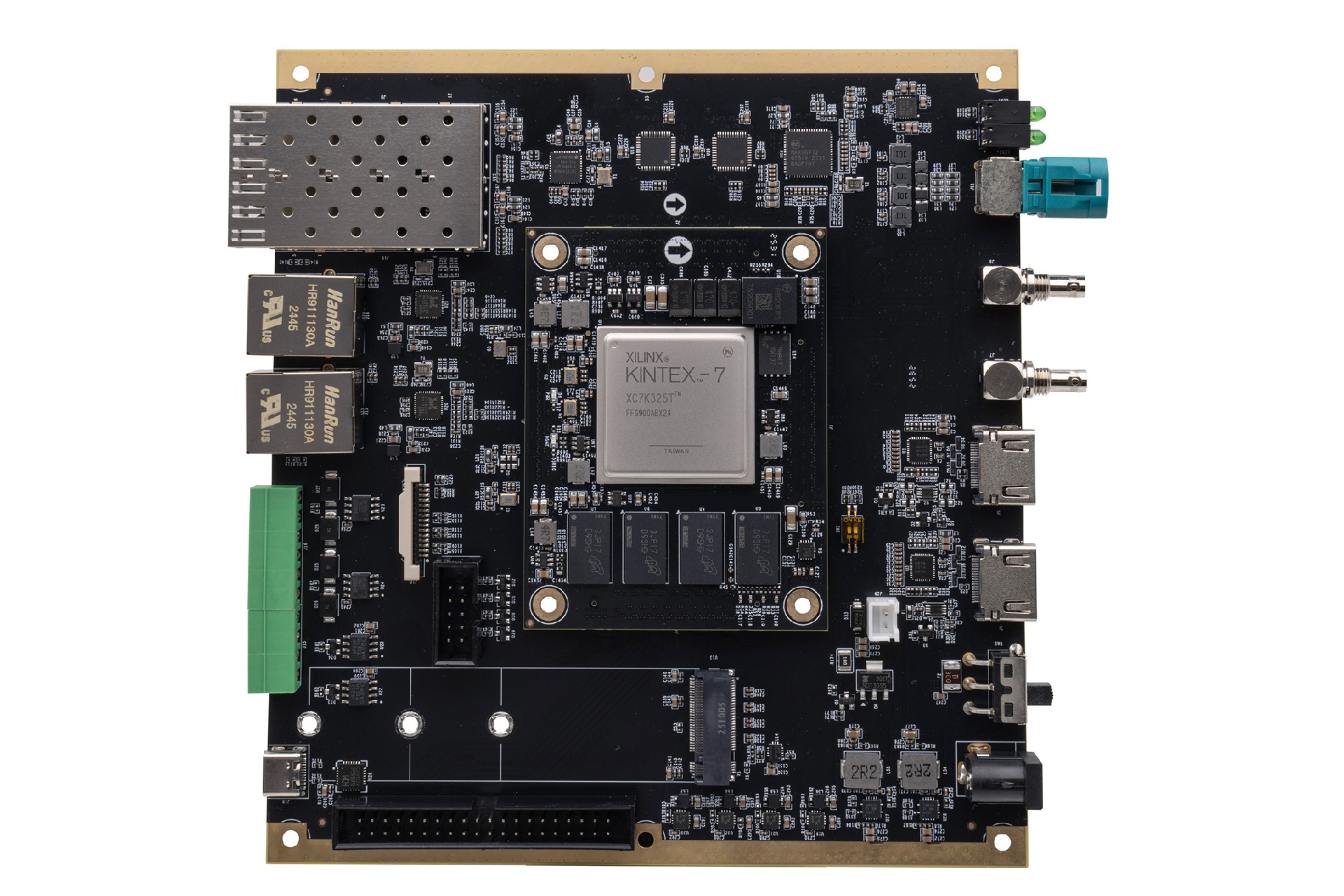

PIPEBLUE-AMD Kintex7 FPGA Development Board
Primarily used for high-performance video verification and algorithm validation, supporting multi-channel video compression and image signal processing (ISP).
Ultra-low latency
High bandwidth
Extensive video interfaces
Supports custom development
Key Parameters：
| FPGA device | XC7K325T-2FFG900I |
| Logic cells (LCs) | 326,080 |
| Lookup Table (LUT) | 50,950 |
| Flip-Flop (FF) | 407,600 |
| Block RAM | 16,020Kb |
| DSP | 840 |
| QSPI FLASH | 128Mbit |
| DDR3 | 2GB |
| Temperature Grade | Industrial grade (I-grade) |
| Board dimensions | 16cm x 13cm |
Interface：
| HDMI 2.0 IN | 1× GTX lane |
| HDMI 2.0 OUT | 1× GTX lane |
| 12G SDI IN/OUT | 2 lanes, I/O configurable (bi-directional) |
| GMSL2 IN | 4 lanes, MAX96712, with PoC |
| 10G SFP+ | 2 lanes |
| Raspberry Pi MIPI CSI Interface | 1 lane |
| Gigabit Ethernet | 2 lanes |
| M.2 SSD | 1 lane，PCIe X4 2.0 |
| CAN | 2 lanes |
| RS485 | 2 lanes |
| USB-UART | 1 lane，TypeC |
| Expansion I/O | 34 × 3.3V I/Os, differential supported |
Typical Applications：
Ultra-low latency codec system, achieving minimal delay through custom codec algorithms
Medical endoscope ISP development, enabling long-distance MIPI sensor connection via GSML interface
SDI, HDMI 2.0, and 10G Ethernet interoperability / conversion
Lossless video storage, directly saving to M.2 SSD via onboard M.2 interface with FPGA hardware acceleration
Radar system, receiving radar data via GMSL input and processing it with FPGA
