PIPEBLUE-China ARM+FPGA SoM
Mainly applied in image and video processing systems, wired and wireless communications, defense and aerospace, medical endoscopy equipment, artificial intelligence, and other fields.
China SoM
Dual-core ARM Cortex-A9
Ultra-compact, industrial-grade chip
Fully compatible with the Vivado software ecosystem, no patches required

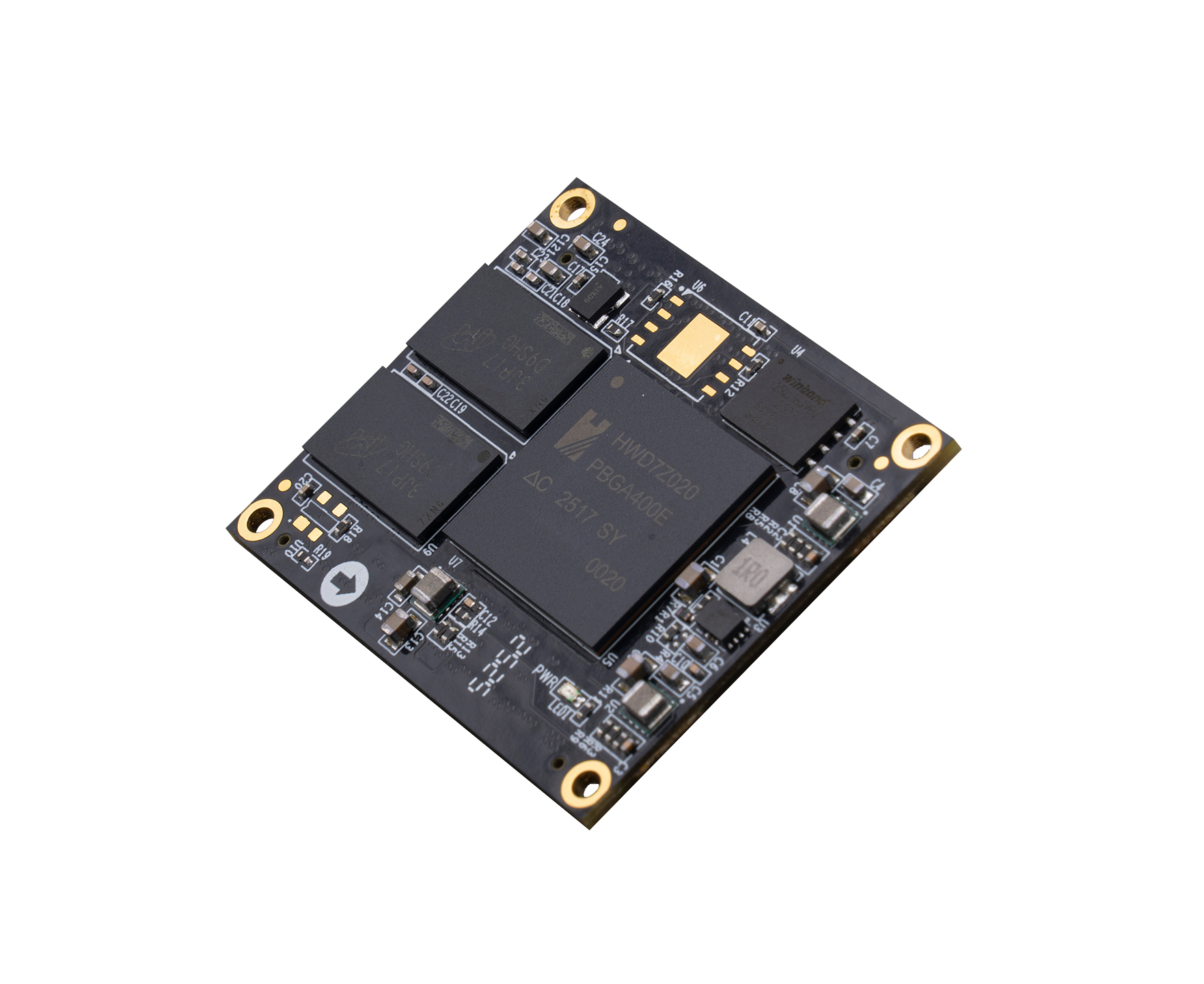

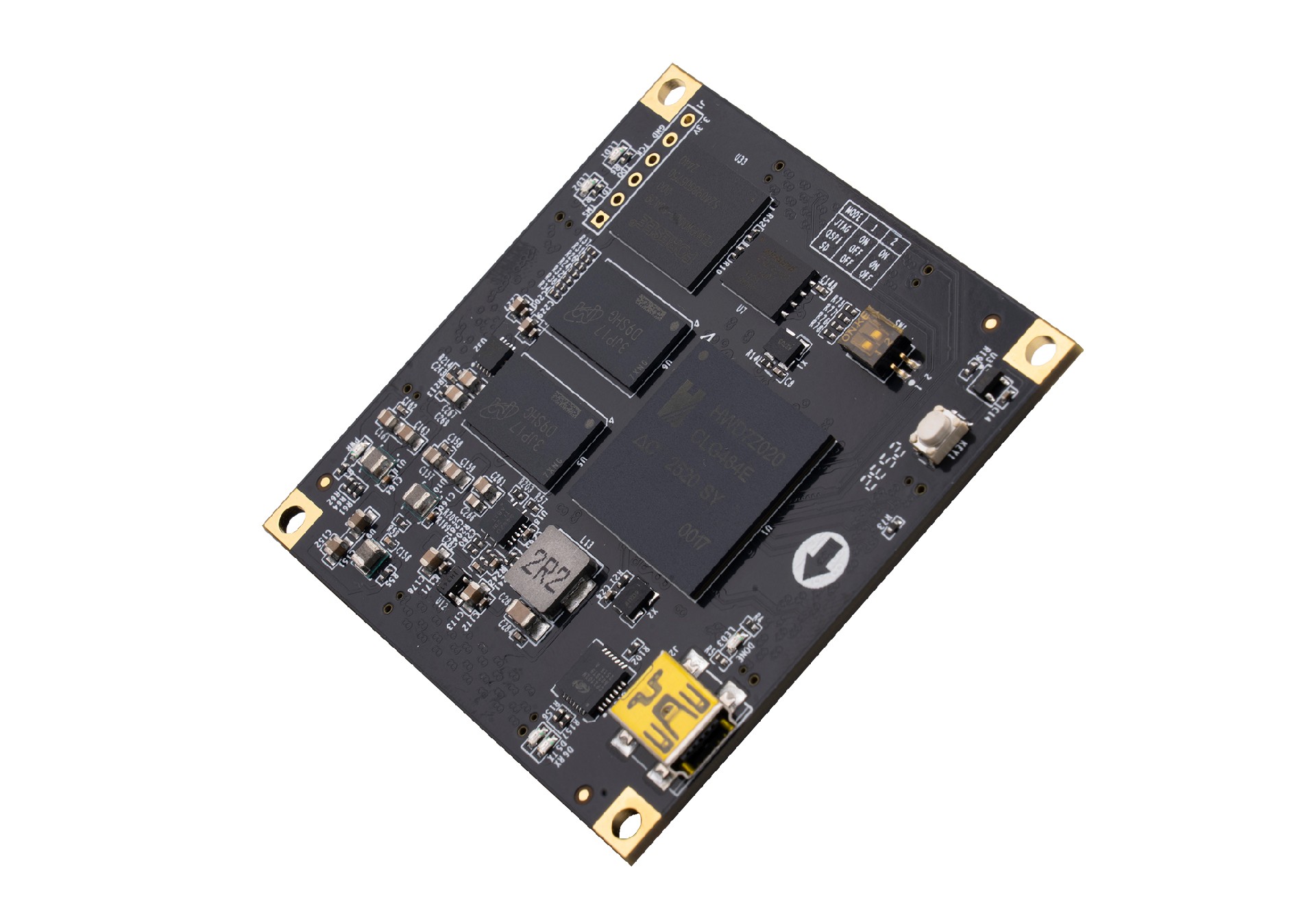

Key Specifications of the Core Board
| SoM | PBC7Z020G |
| FPGA Chip Model | HWD7Z020-1PBGA400 |
| ARM | Dual-core ARM Cortex-A9 (800 MHz) |
| DDR | DDR3 1GB |
| Chip Grade | Industrial grade; operating temperature: -55°C to 125°C |
| Logic Cells | 85K |
| LUTs | 53200 |
| Flip-Flops | 106400 |
| DSP | 220 |
| Block RAM | 4.9Mb |
| eMMC FLASH | 8GB |
| QSPI FLASH | 256MBit |
| PS MIO | 39 |
| PL IO | 198 |
| LVDS | 48 |
| Adjustable-voltage I/Os | 100 |

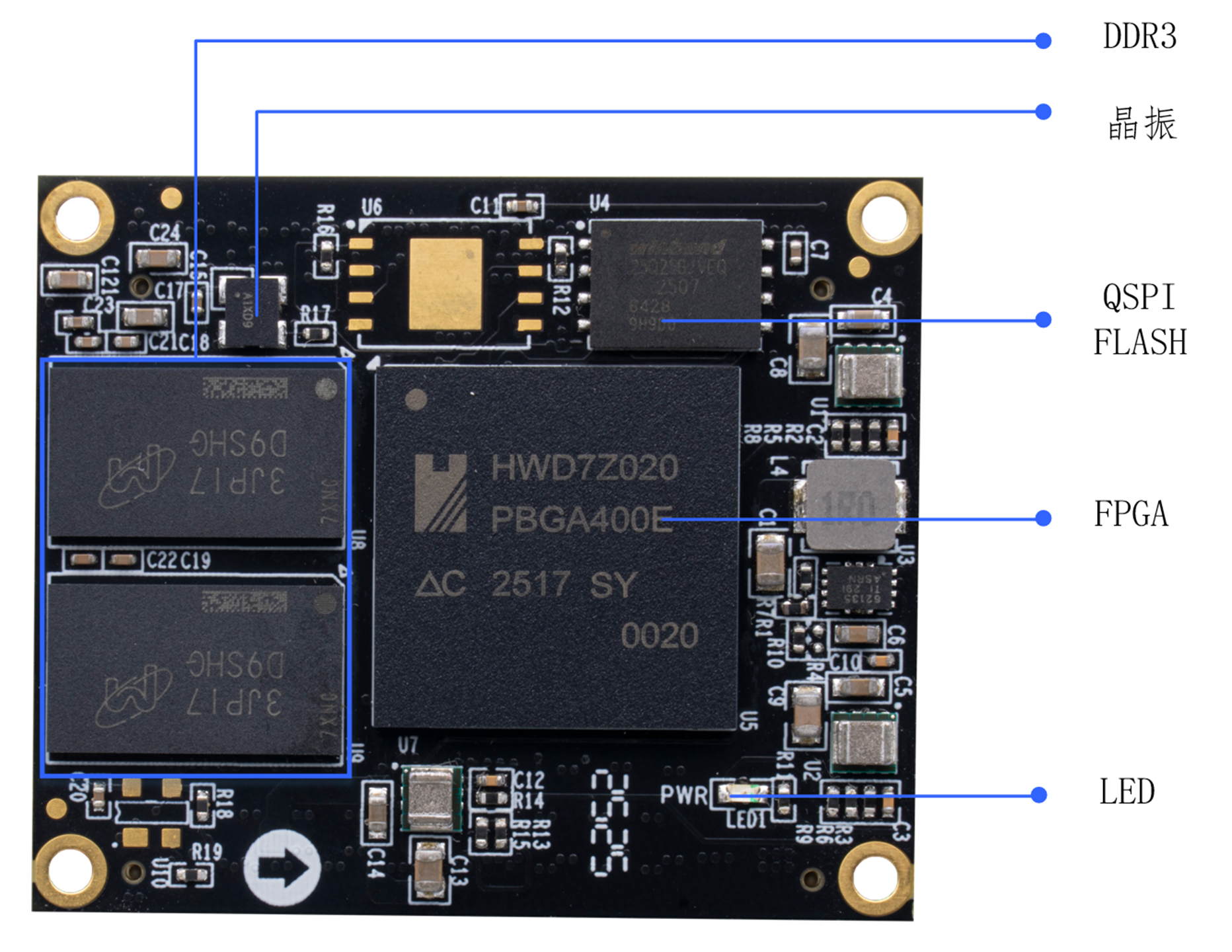

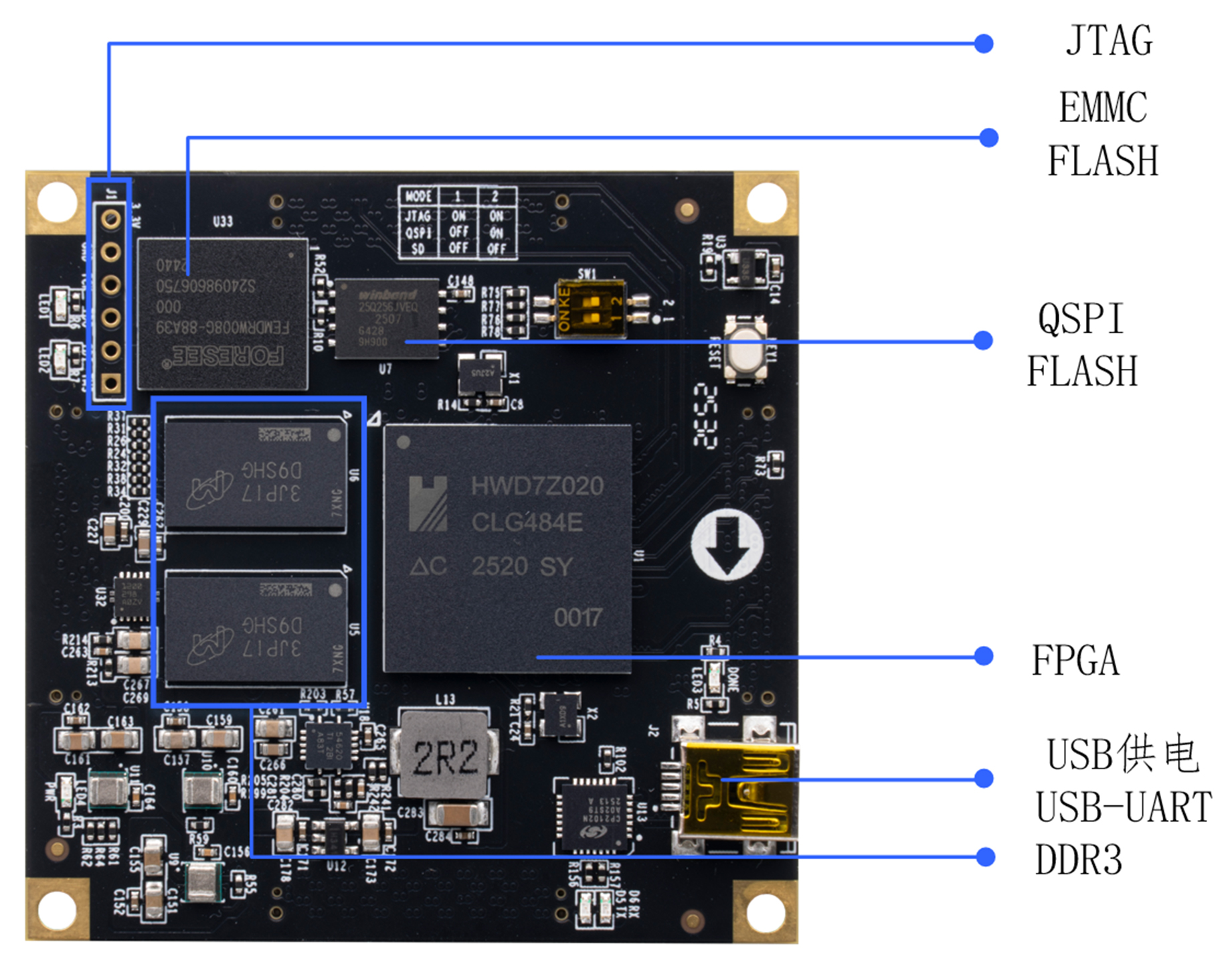

Functions and Interface Specifications
| DDR3 | 32-bit bus with data rate up to 1066 Mbps |
| QSPI FLASH | 32MB QSPI Flash, used for FPGA user data storage |
| ADC | 2 x integrated ADCs for on-chip voltage and temperature sensing, with a sampling rate of 1 Mbps |
| Crystal oscillator | 1 × 33.33 MHz active crystal oscillator for PS clock source |

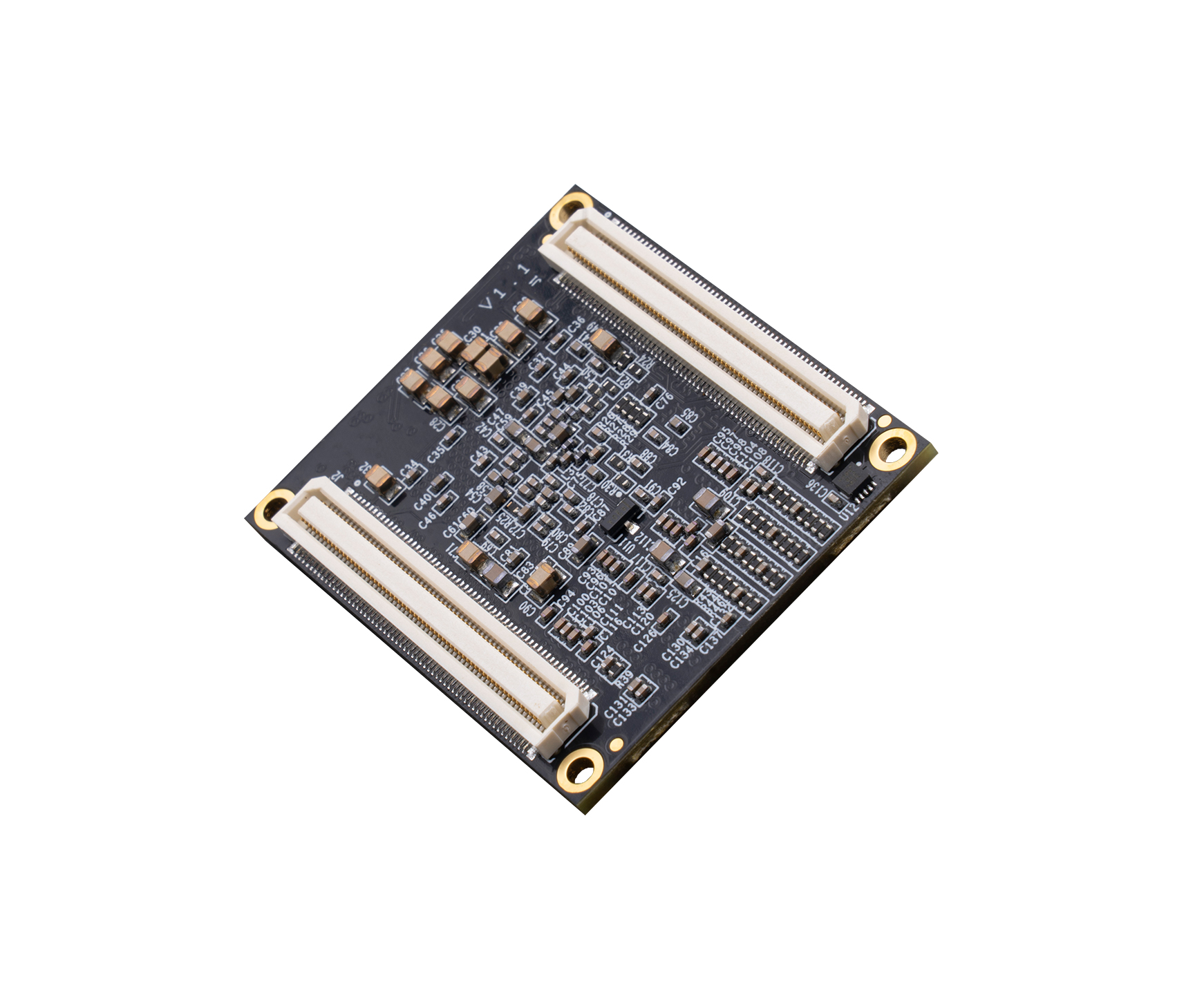

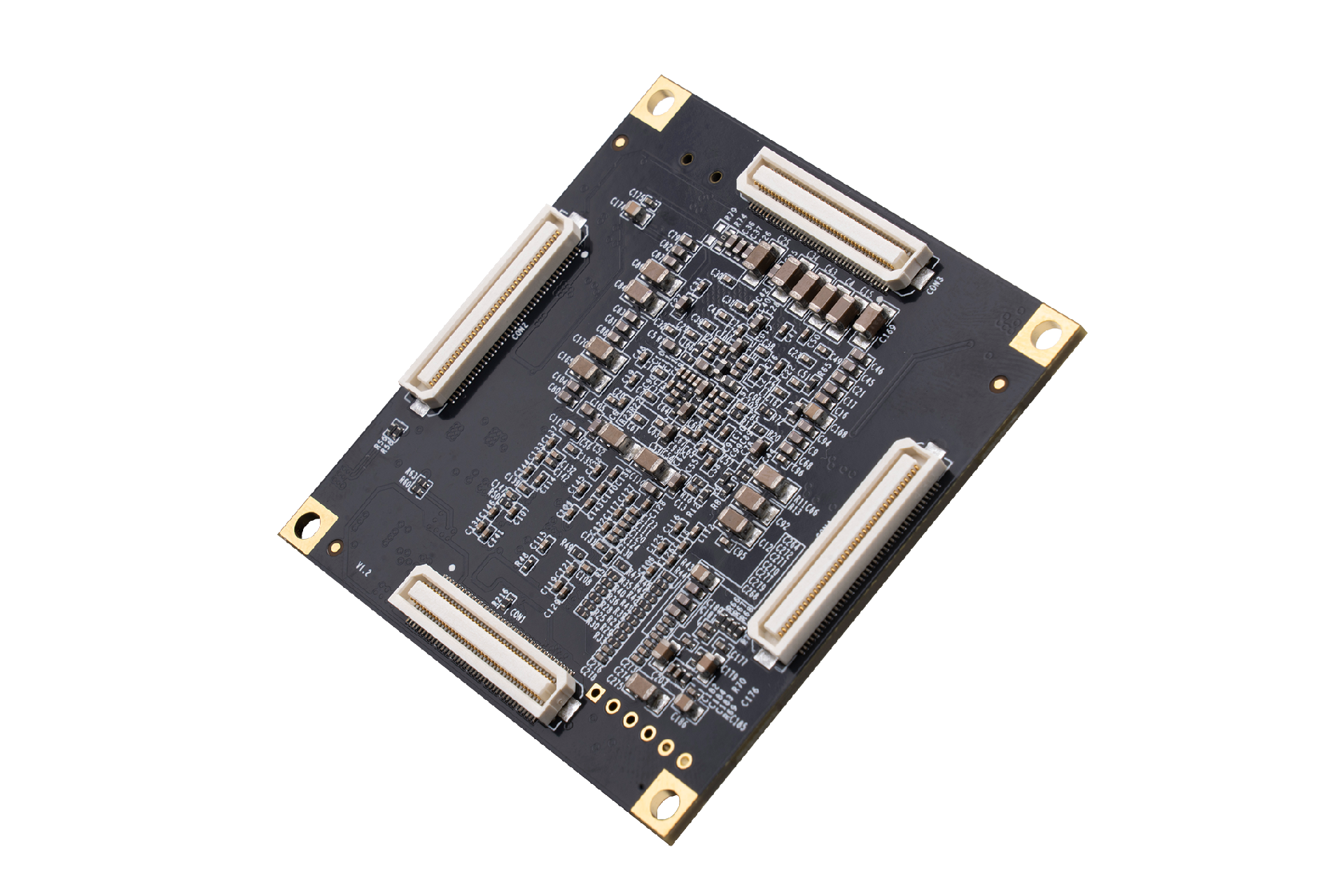

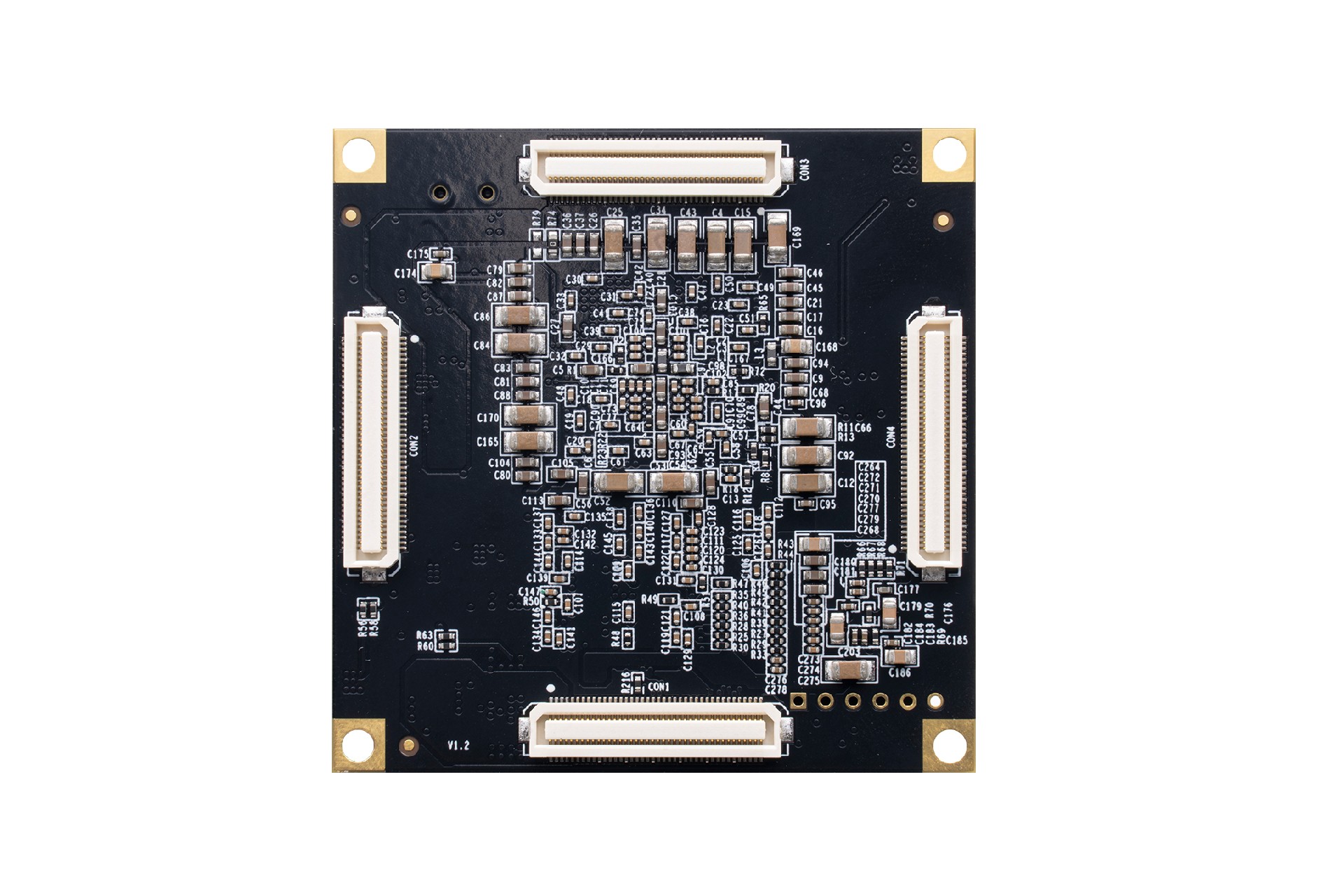

| Connector | 2 × 120-pin Panasonic connectors |
| LED | 2 × power indicator LEDs (1 × PS-controlled, 1 × PL-controlled) |
Power specifications
| Input voltage | 5V power supply |

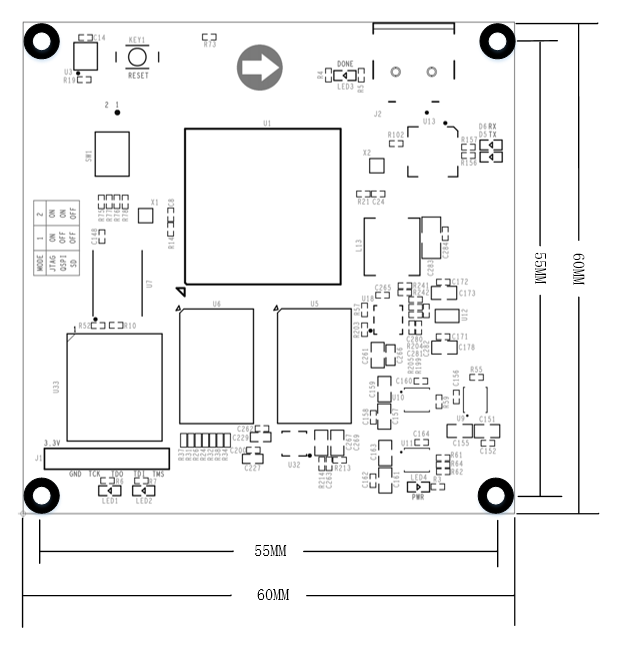

Mechanical dimensions
| Dimensions | 35MM x 42MM x 5.5MM |
