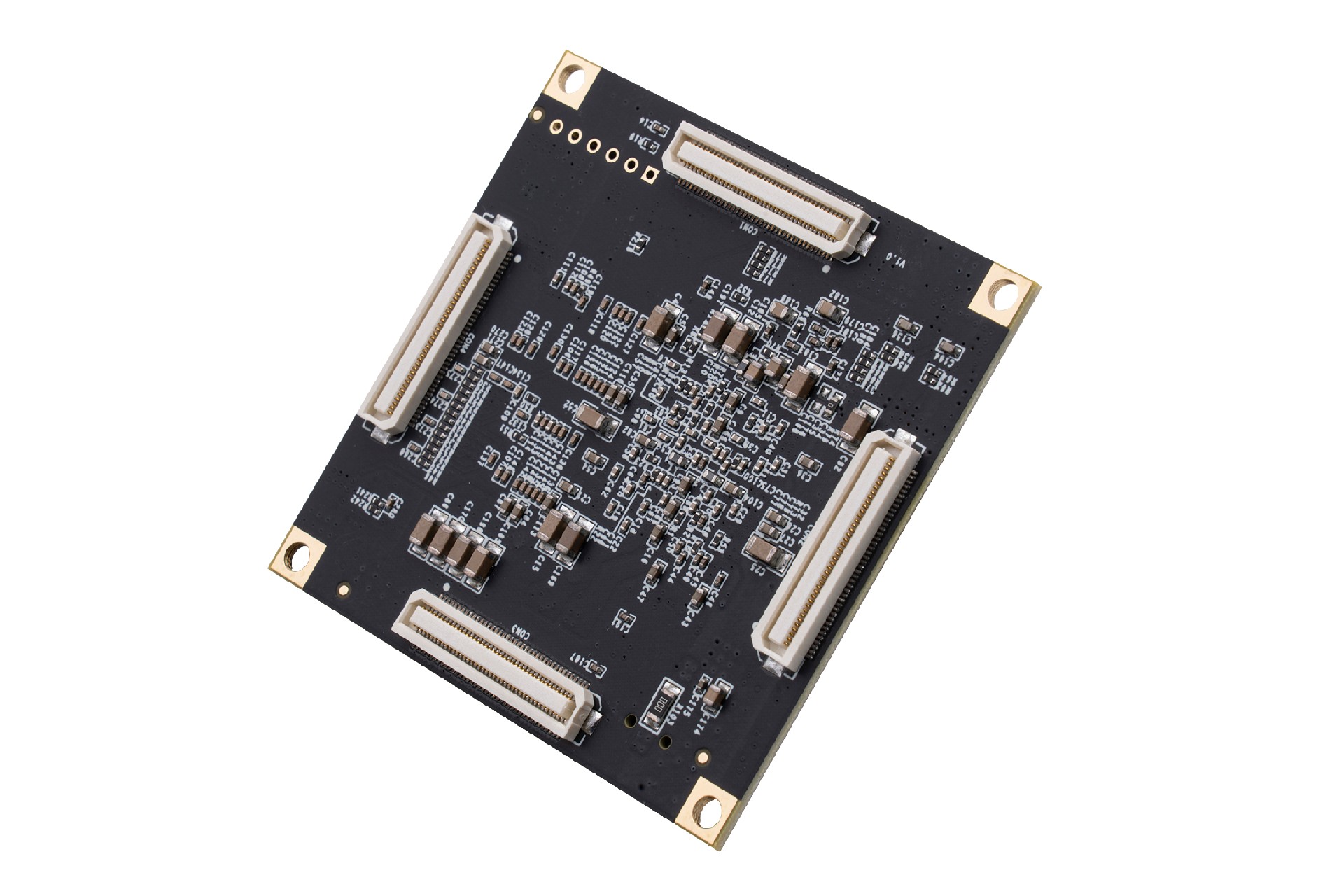

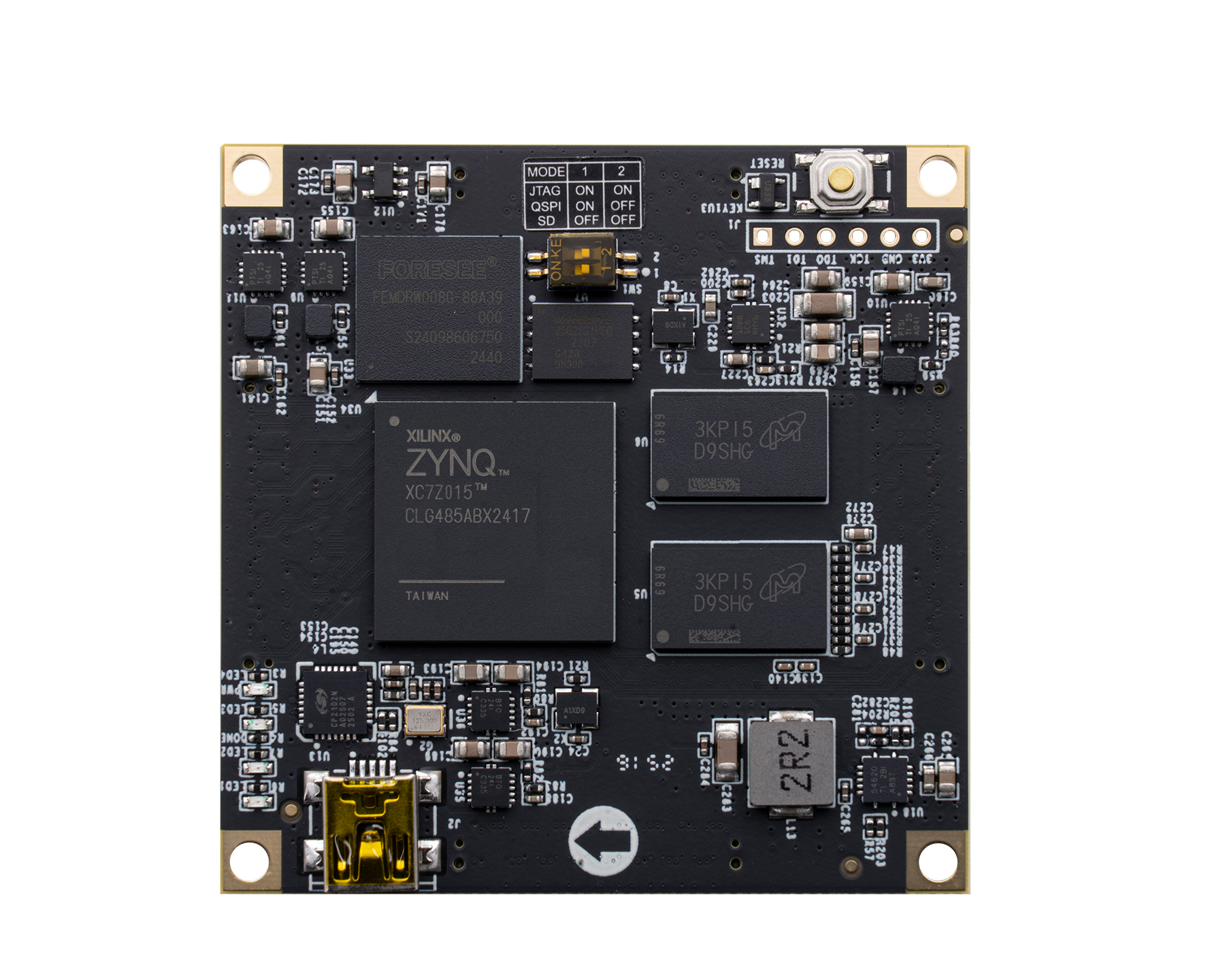

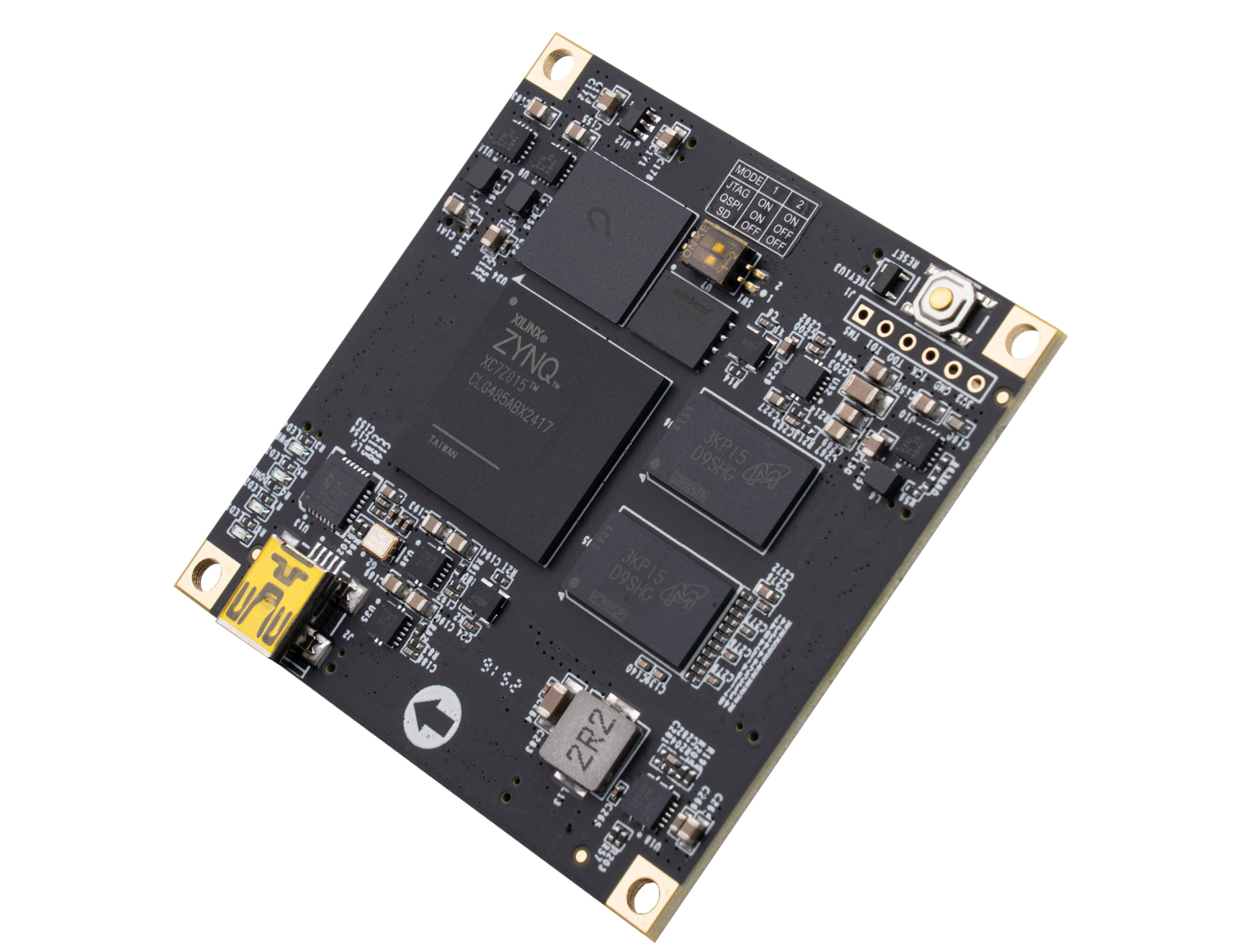

PIPEBLUE-AMD SoC SoM
Suitable for PCIe, video and image processing, SFP+ fiber/Ethernet communication, etc.
Dual-core ARM Cortex-A9
Industrial grade
Key Specifications of the Core Board
| SoM | PBC7Z015 |
| FPGA Chip Model | XC7Z015-2CLG485I |
| ARM | Dual-core ARM Cortex-A9 (767 MHz) |
| DDR | DDR3 1GB |
| Chip Grade | Industrial grade; operating temperature: -40°C to 85°C |
| Logic Cells | 74K |
| LUTs | 46,200 |
| Flip-Flops | 92,400 |
| DSP | 160 |
| Transceiver | 8 lane,Supports PCIe 2.0 X8 |
| Block RAM | 3.3Mbit |
| PS MIO | 39 |
| PL IO | 148 |
| LVDS | 24 |
| Adjustable-voltage I/Os | 50 |
Functions and Interface Specifications

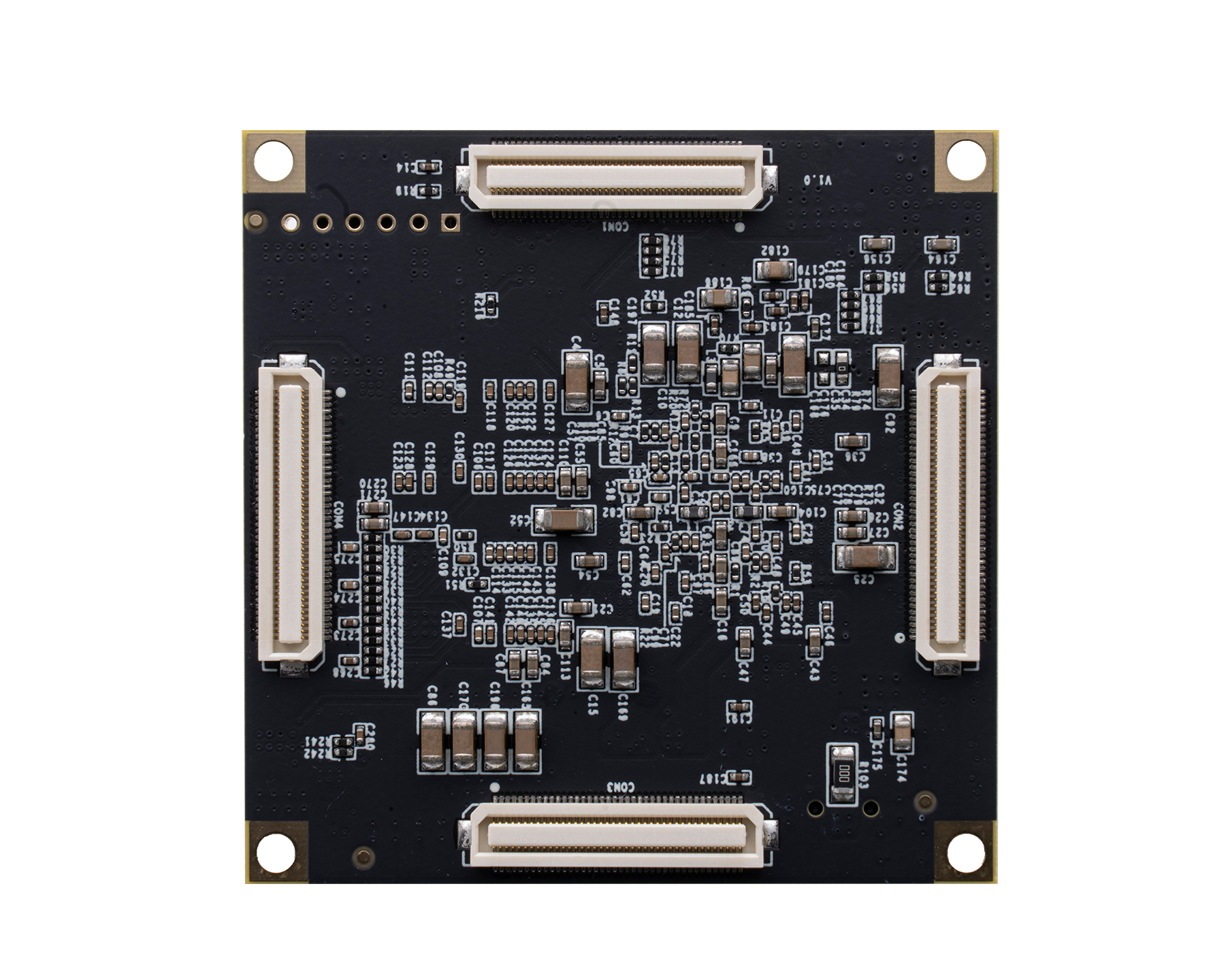

| DDR3 | 2 × 512MB DDR3 (total 1GB), 32-bit bus, data rate up to 1066 Mbps |
| QSPI FLASH | 1 × 32 MB QSPI Flash for FPGA user data storage |
| eMMC FLASH | 8 GB capacity, can be used as system mass storage |
| JTAG interface | 6-pin JTAG header reserved for core board programming and debugging |
| ADC | 2 ADCs, internal ADCs integrated in the chip for on-chip voltage and temperature sensing, with a sampling rate of 1 Mbps |
| Crystal oscillator | 1 × 33.33 MHz active crystal oscillator for PS clock; 1 × 50 MHz active crystal oscillator for PL clock |
| USB-UART | 1 × USB-to-UART interface, providing 5V power while enabling communication with a PC |
| Key | 1 × reset key |
| Connector | 4 × 80-pin Panasonic connectors, with 39 pins for PS and 198 pins for PL |
| LED | 2 LED power indicators, one controlled by PS and one by PL |
| DIP switch | Used to configure PS boot mode, e.g., JTAG, QSPI, or SD card |
Power specifications
| Input voltage | 5V power supply |

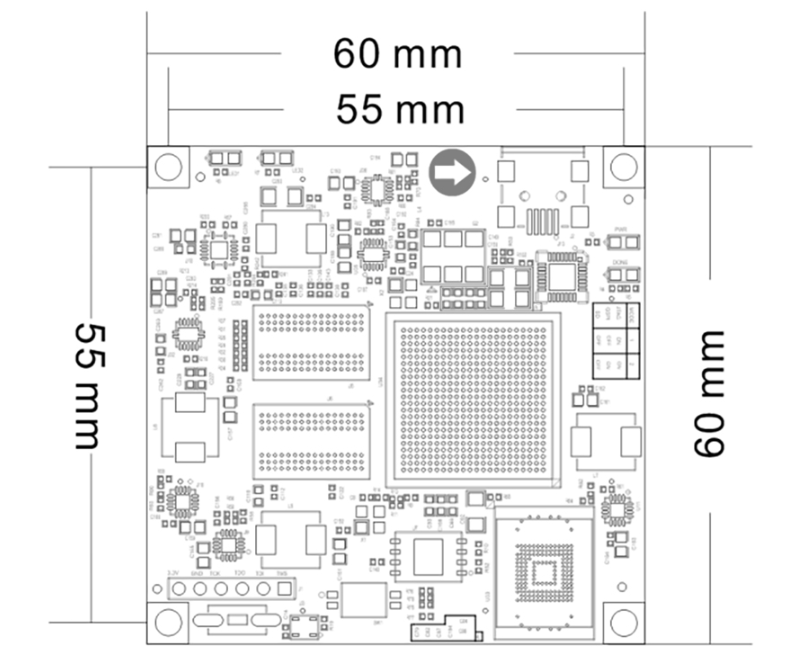

Mechanical dimensions
| Dimensions | 60MM x 60MM x 8.4MM |
