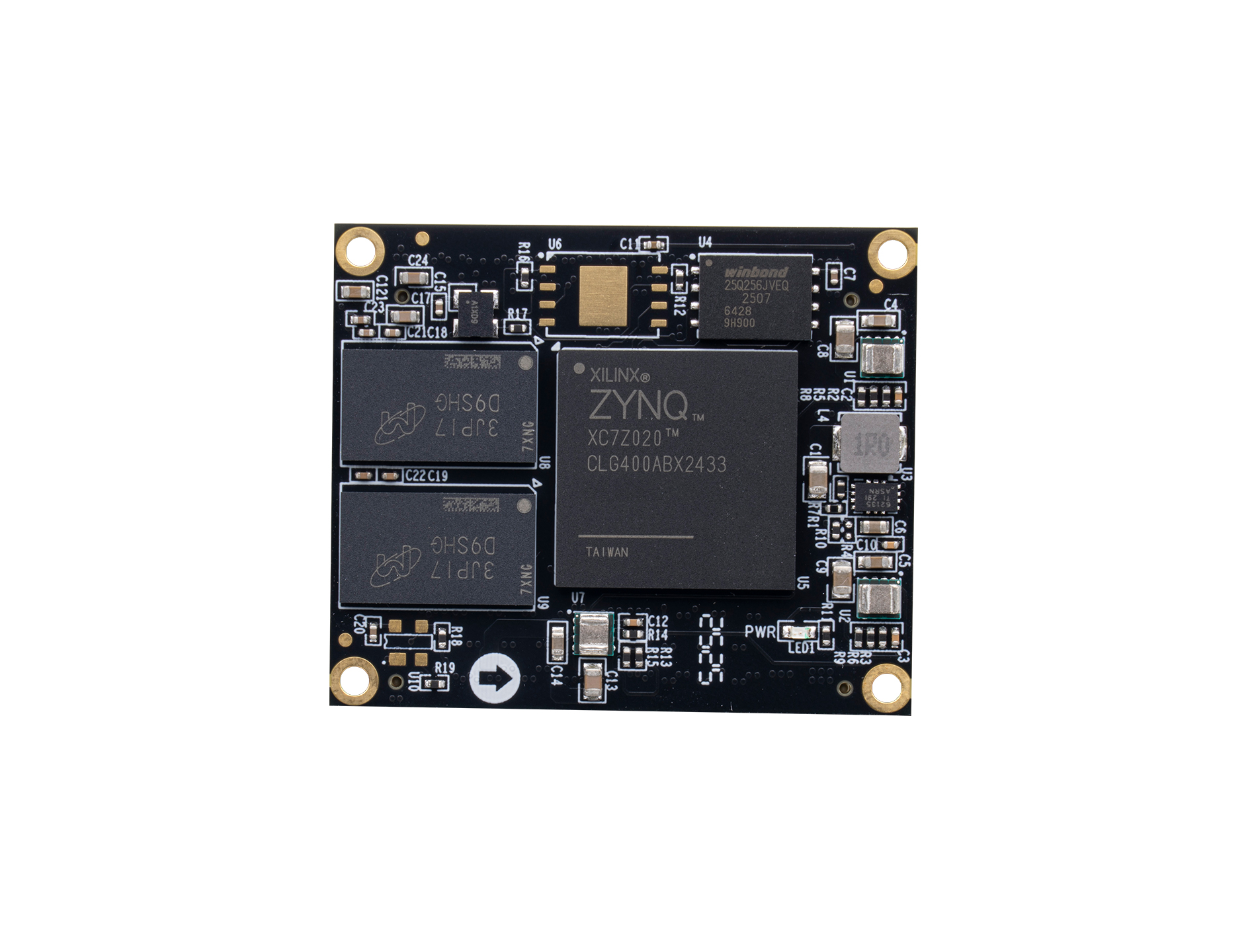

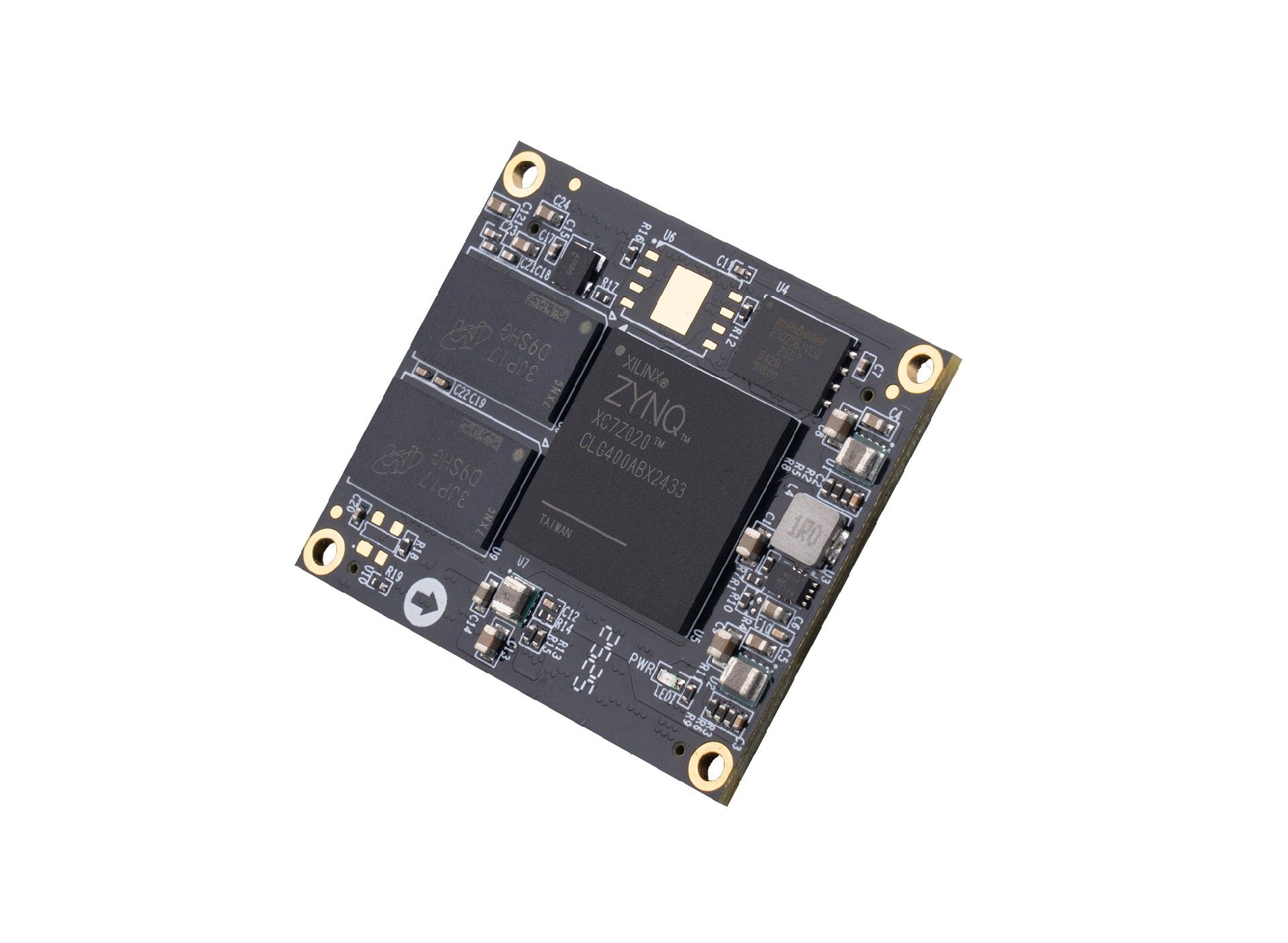

PIPEBLUE-AMD SoC SoM
Widely used in security surveillance, automotive electronics, machine vision, smart manufacturing, video/audio acquisition and processing, medical devices, instrumentation, smart grid, data centers, and other industries.
Dual-core ARM Cortex-A9
Ultra-compact size
Industrial grade
Key Specifications of the Core Board
| SoM | PBC7Z020 |
| FPGA Chip Model | XC7Z020-2CLG400I |
| ARM | Dual-core ARM Cortex-A9 |
| DDR | DDR3 1GB |
| Chip Grade | Industrial grade; operating temperature: -40°C to 85°C |
| Logic Cells | 85K |
| LUTs | 53,200 |
| Flip-Flops | 106,400 |
| DSP | 220 |
| Block RAM | 4.9Mbit |
| PS MIO | 48 |
| PL IO | 120 |
Functions and Interface Specifications
| DDR3 | 32-bit bus, data rate up to 1066 Mbps |
| QSPI FLASH | 32MB QSPI Flash, used for FPGA user data storage |
| ADC | 2 x integrated ADCs for on-chip voltage and temperature sensing, with a sampling rate of 1 Mbps |
| Crystal oscillator | 1 × 33.333 MHz crystal oscillator for PS clock input |

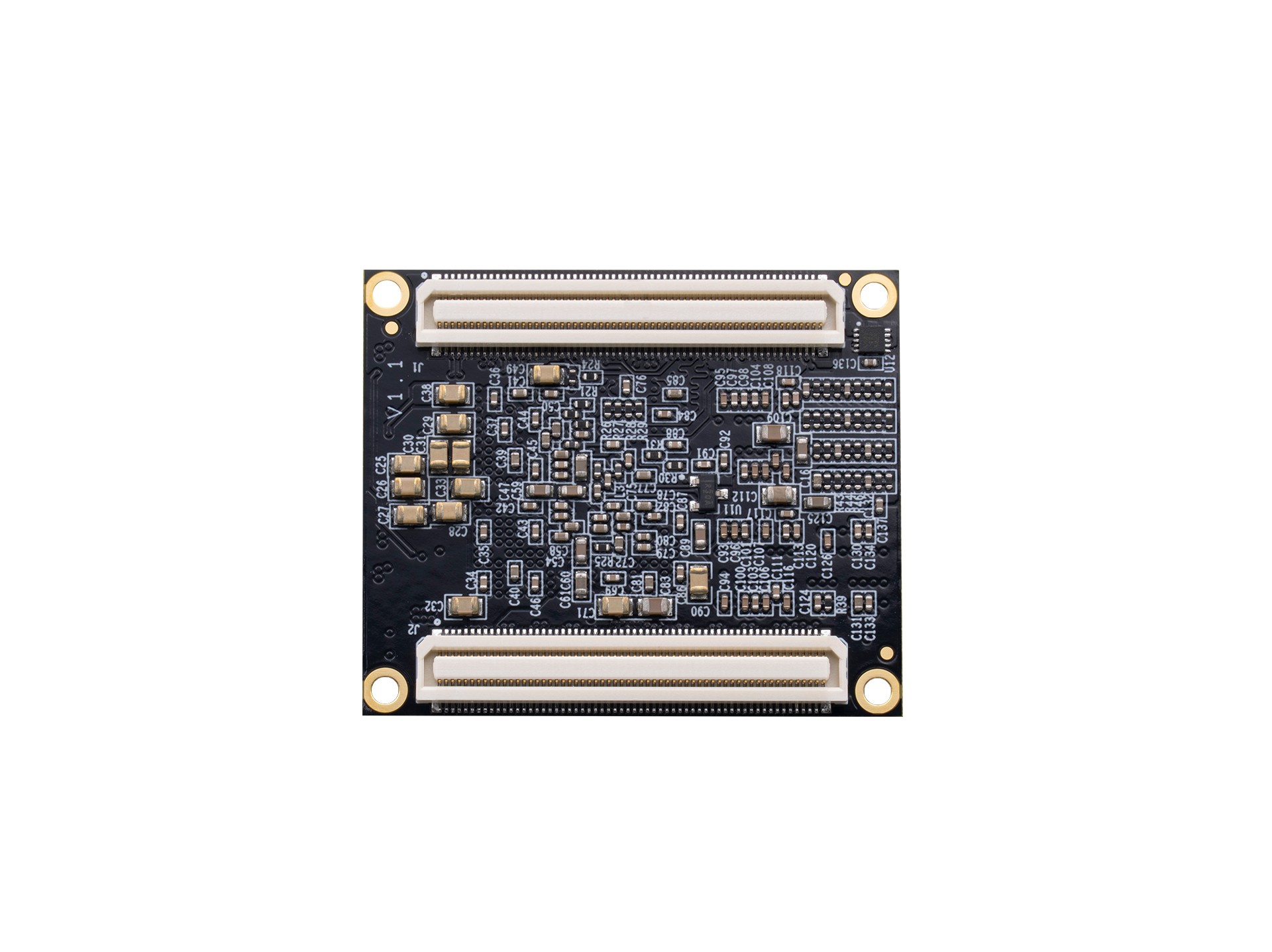

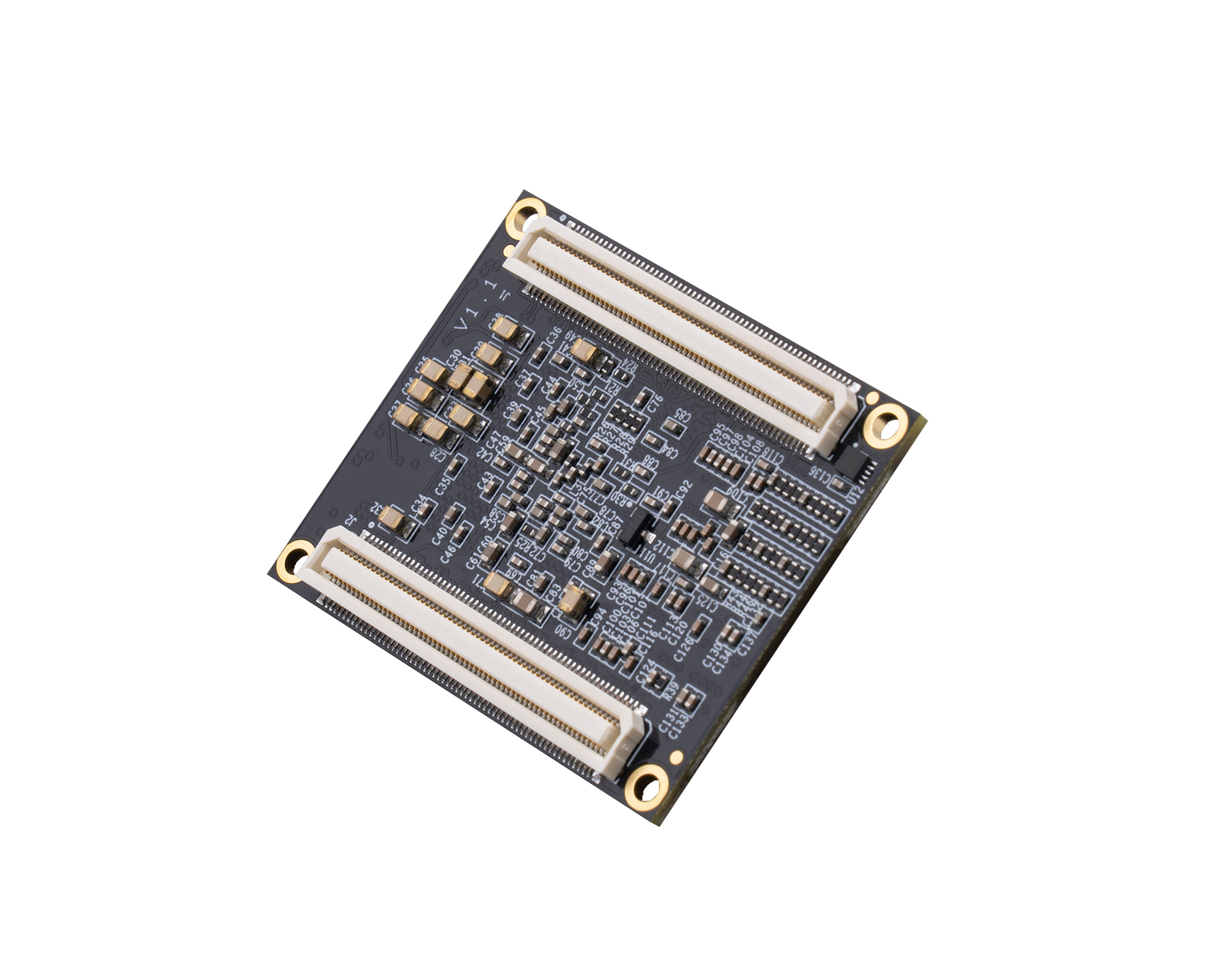

| Connector | 2 × 120-pin Panasonic connectors |
| LED | 1 × Power indicator LED |
Power specifications
| Input voltage | 5V power supply |

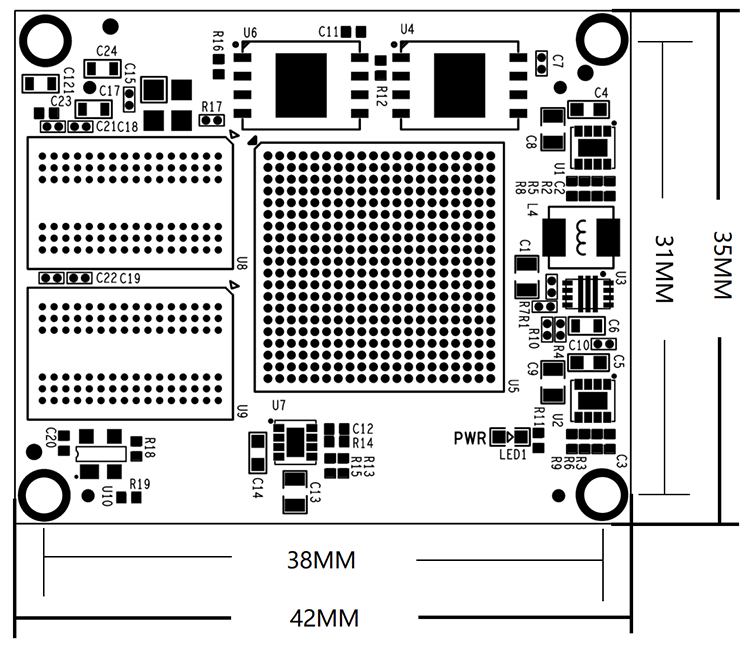

Mechanical dimensions
| Dimensions | 35MM x 42MM x 5.5MM |
