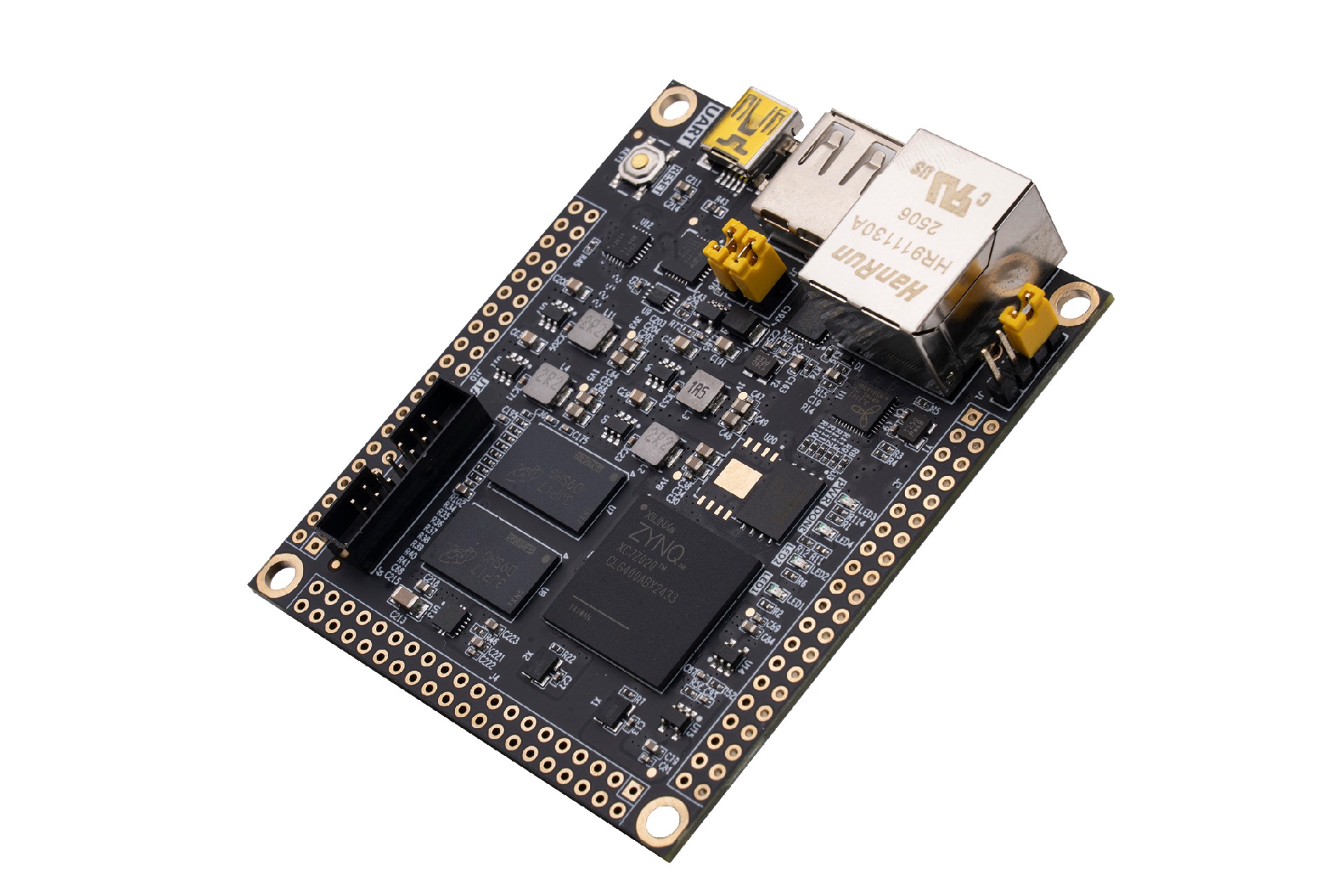

PIPEBLUE-AMD SoC SoM
data processing and storage, video transmission and processing, as well as industrial control.
Dual-core ARM Cortex-A9
Industrial grade
Key Specifications of the Core Board
| SoM | PBC7020C |
| FPGA Chip Model | XC7Z020-2CLG400I |
| ARM | Dual-core ARM Cortex-A9 |
| DDR | DDR3 1GB |
| Chip Grade | Industrial grade; operating temperature: -40°C to 85°C |
| Logic Cells | 85K |
| LUTs | 53,200 |
| Flip-Flops | 106,400 |
| DSP | 220 |
| Block RAM | 4.9Mbit |
| PS MIO | 8 |
| PL IO | 94 |
| LVDS | 48 |

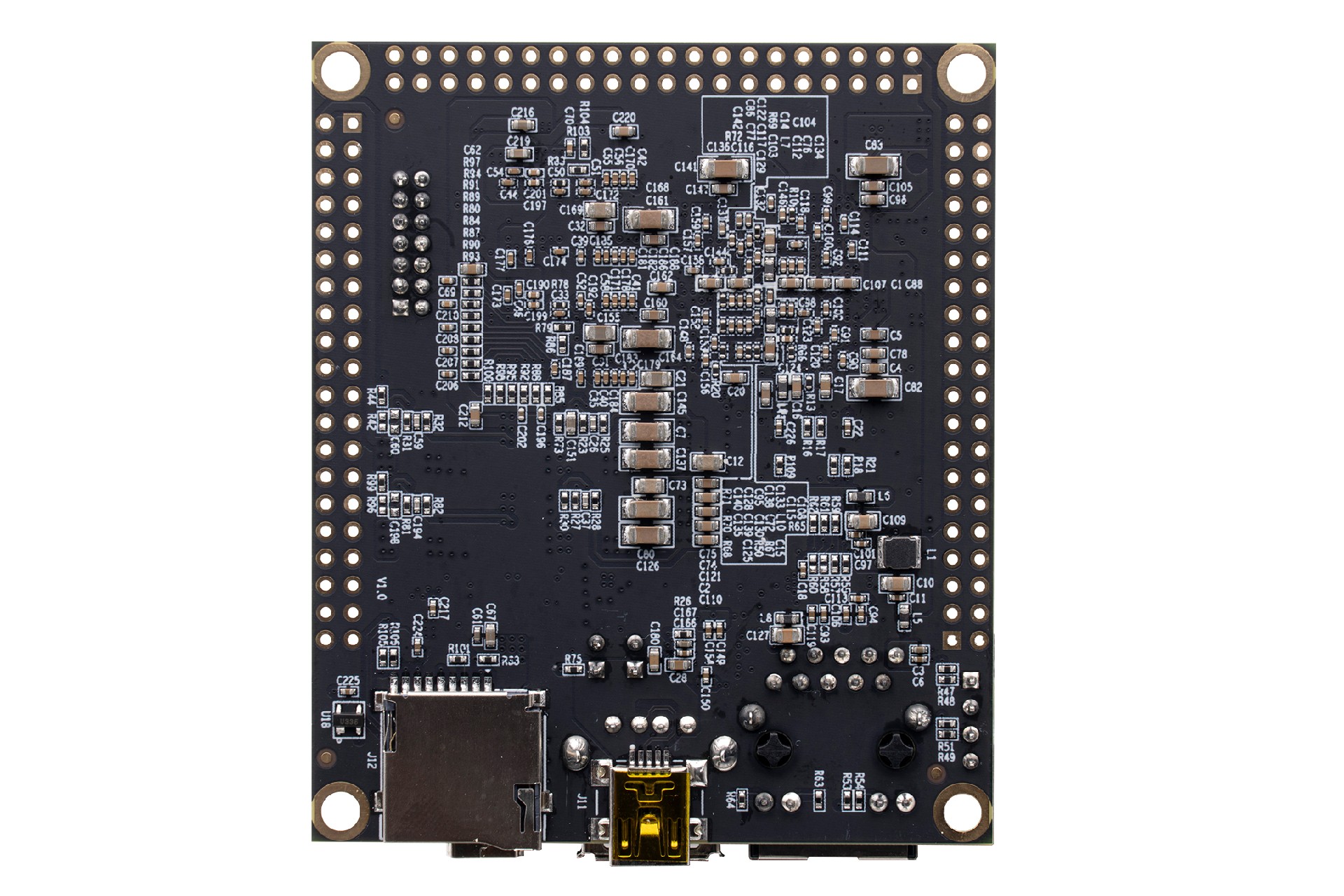

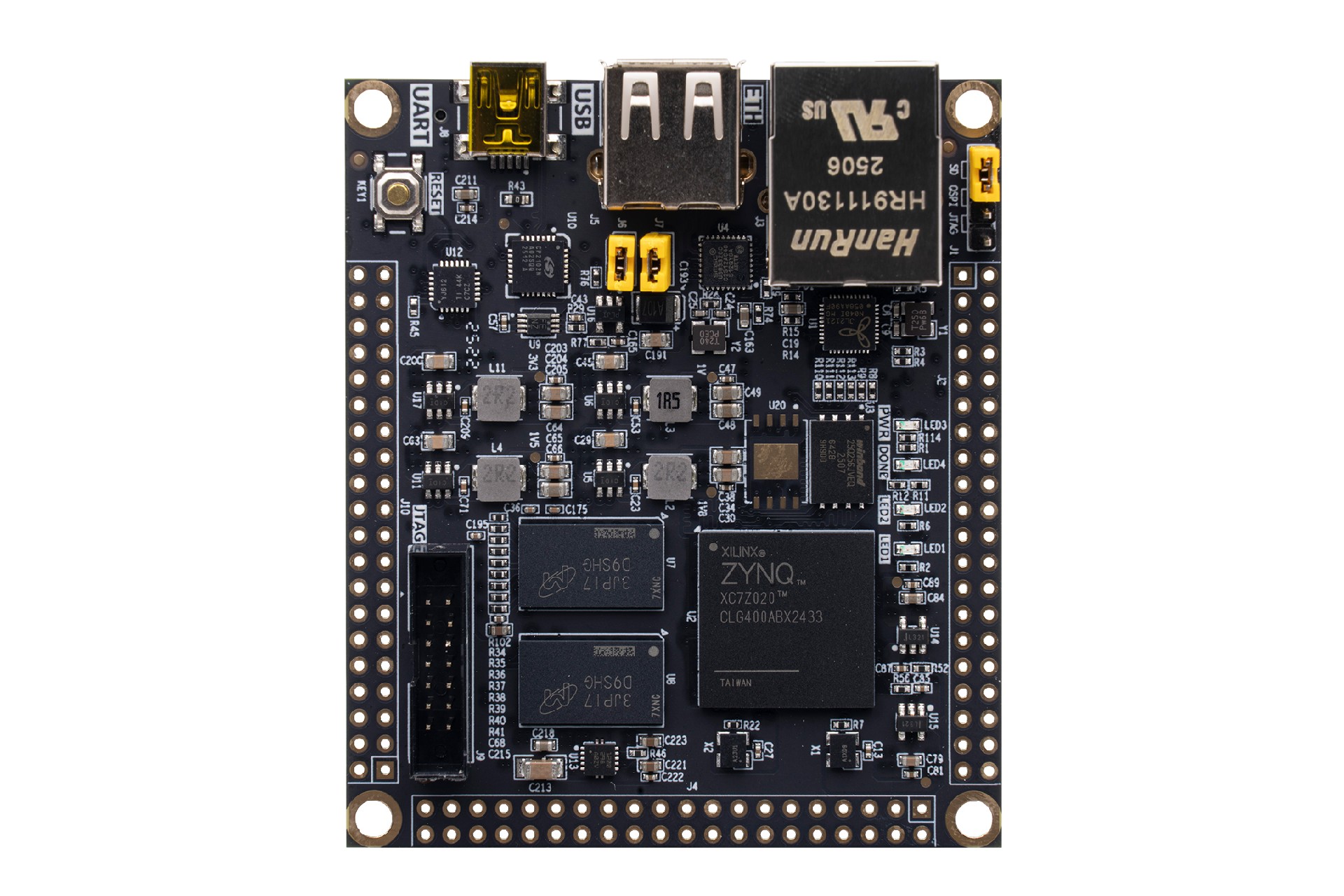

Functions and Interface Specifications
| DDR3 | 2 × 512MB DDR3 (total 1GB), 32-bit bus, data rate up to 1066 Mbps |
| QSPI FLASH | 1 × 32 MB QSPI Flash for FPGA user data storage |
| JTAG interface | 14-pin JTAG header reserved for core board programming and debugging |
| Crystal oscillator | 1 × 33.33 MHz active crystal oscillator for PS clock; 1 × 50 MHz active crystal oscillator for PL clock |
| Ethernet | 1 × Gigabit Ethernet (RJ-45) port for Ethernet data exchange |
| USB HOST | 1 × USB 2.0 HOST port, for connecting peripherals such as mouse, keyboard, and USB flash drives |
| USB OTG | 1 × USB 2.0 OTG port (rear), for OTG communication with PC or USB devices |
| USB-UART | For power supply and serial communication with PC or external devices |
| TF card | 1 × Micro SD card slot for storing OS images and file systems |
| Key | 1 x reset button for CPU reset |
| Expansion interface | 3 × 40-pin expansion headers for extending PL and PS I/Os of the ZYNQ, supporting 7-inch TFT modules, camera modules, and AD/DA modules. |
| LED | 2 LED power indicators, one controlled by PS and one by PL |
| DIP switch | Used to configure PS boot mode, e.g., JTAG, QSPI, or SD card |
Power specifications
| Input voltage | 5V power supply |

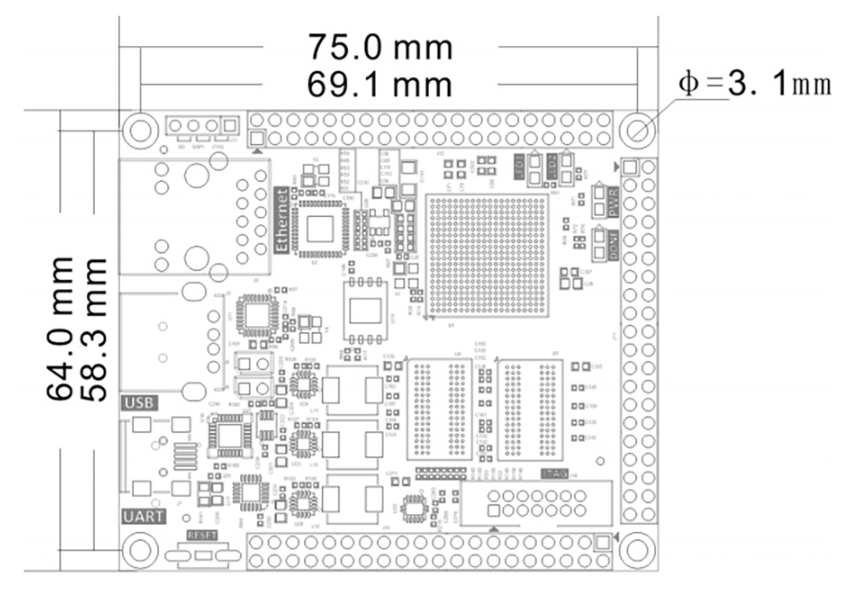

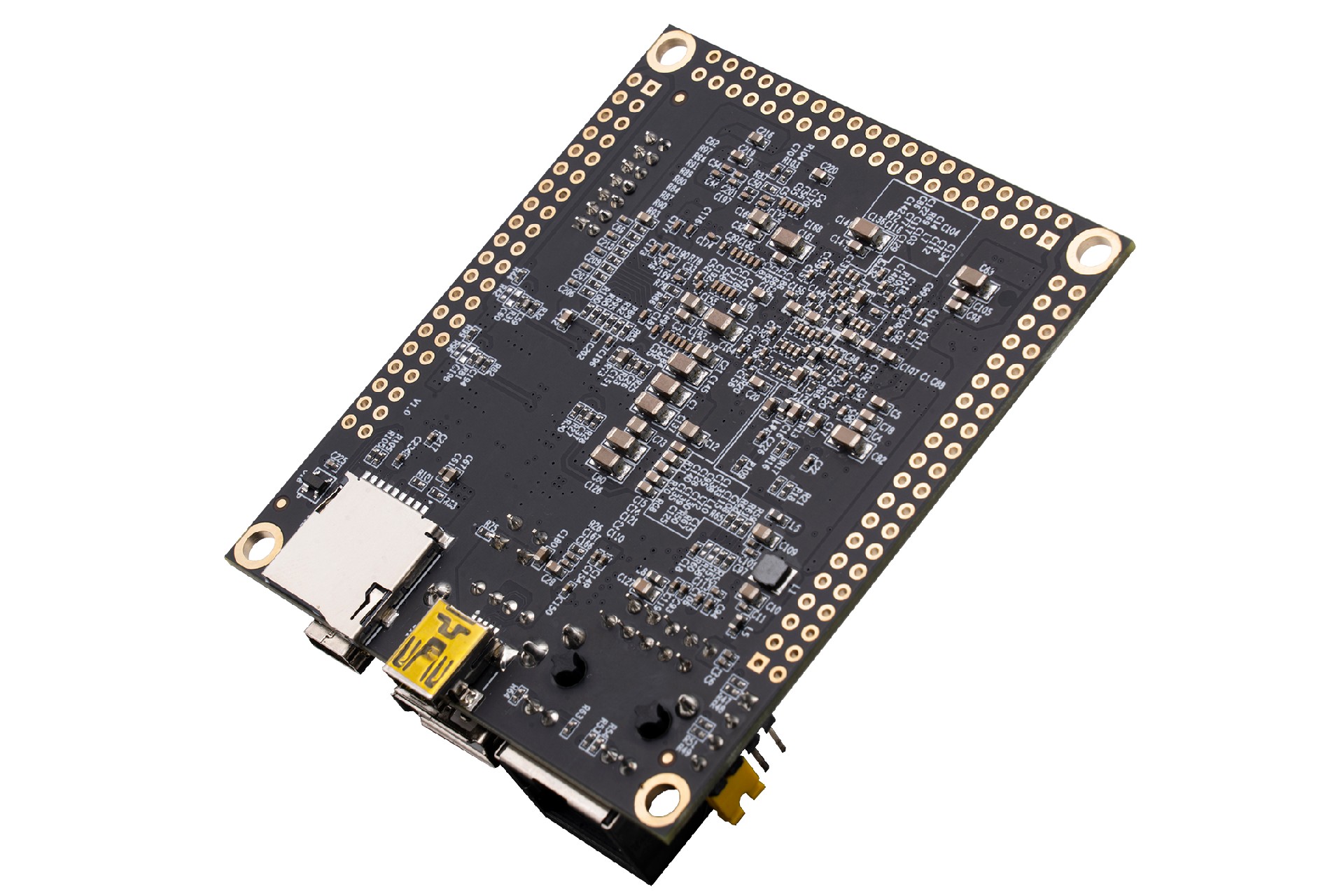

Mechanical dimensions
| Dimensions | 75MM x 64MM x 19.3MM |
