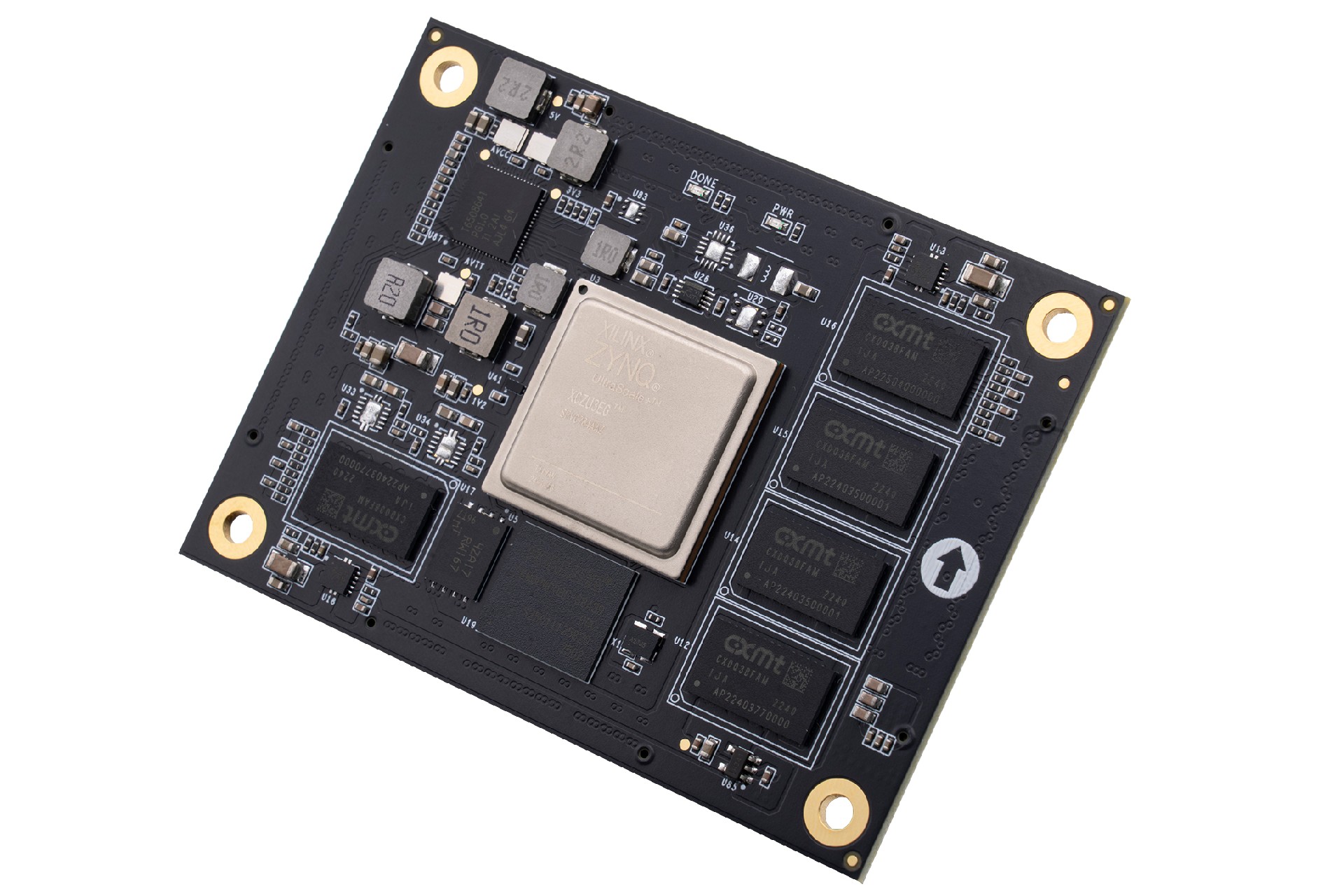

PIPEBLUE-AMD SoC SoM
Equipped with Mali-400 MP2 GPU and 16nm FinFET+ programmable logic, suitable for information and communication, high-speed data exchange and storage, industrial control, AI intelligence, cloud computing, 4K video transmission and processing, as well as aerospace applications.
Quad-core ARM Cortex-A53 + Dual-core ARM Cortex-R5
5GB DDR4
Mali™-400 MP2 GPU
32GB eMMC FLASH，32MB QSPI FLASH

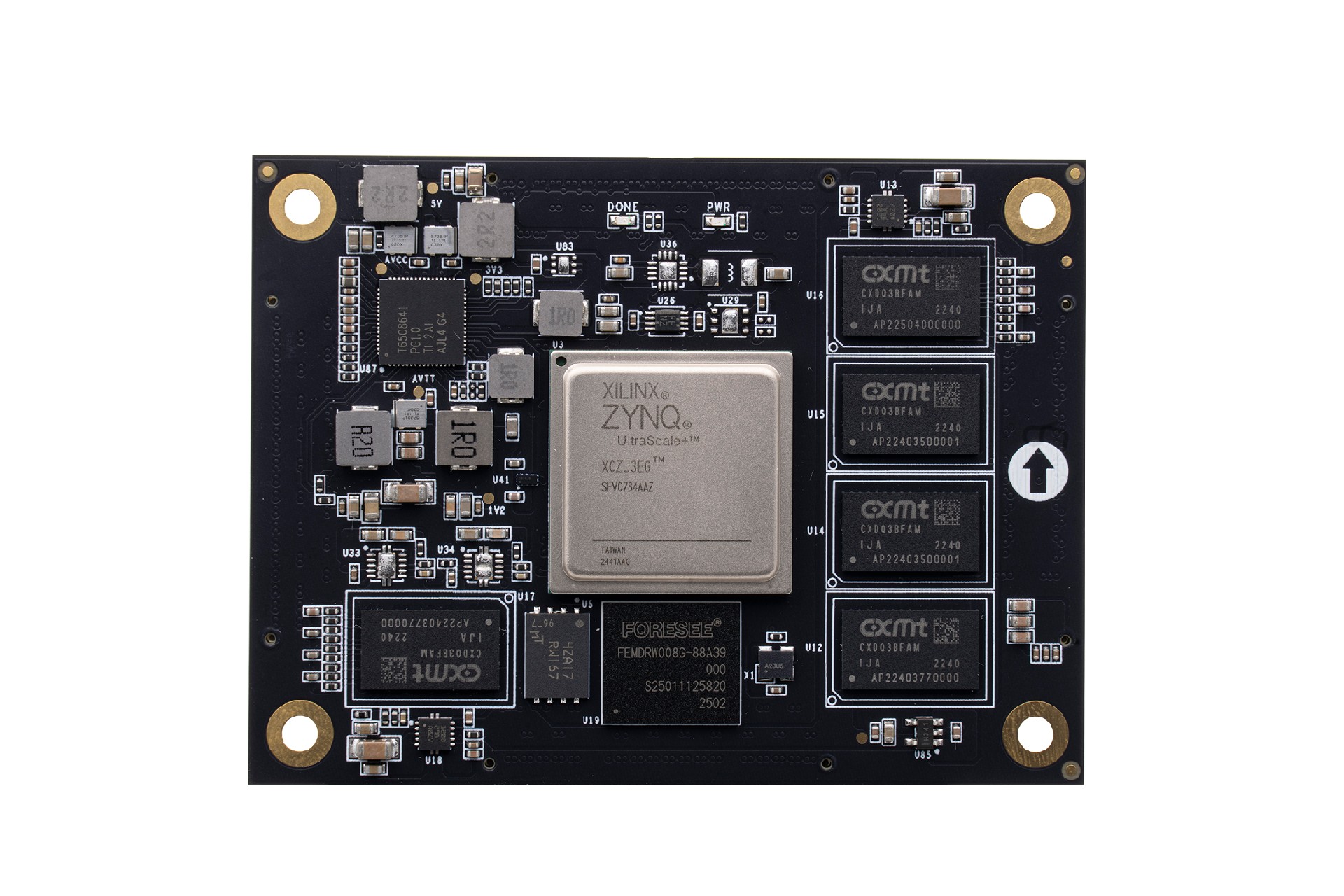

Key Specifications of the Core Board
| SoM | PBC3EG |
| FPGA Chip Model | XCZU3EG-1SFVC784I |
| ARM | Quad-core ARM Cortex-A53 + Dual-core ARM Cortex-R5,500 MHz |
| GPU | Mali™-400 MP2 GPU |
| PS DDR | DDR4 4GB |
| PL DDR | DDR4 1GB |
| Chip Grade | Industrial grade; operating temperature: -40°C to 85°C |
| Logic Cells | 154K |
| LUTs | 71K |
| Flip-Flops | 141K |
| DSP | 360 |
| Block RAM | 7.6Mbit |
| HP I/O | 96 |
| HD I/O | 84 |
Functions and Interface Specifications
| eMMC FLASH | 32GB eMMC Flash chip for boot configuration and system file storage |
| QSPI FLASH | 32MB QSPI Flash, used for FPGA user data storage |
| Crystal oscillator | 1 × 33.333 MHz crystal oscillator for PS clock input 1 × 200 MHz differential crystal oscillator for PL system clock and DDR4 controller reference clock |

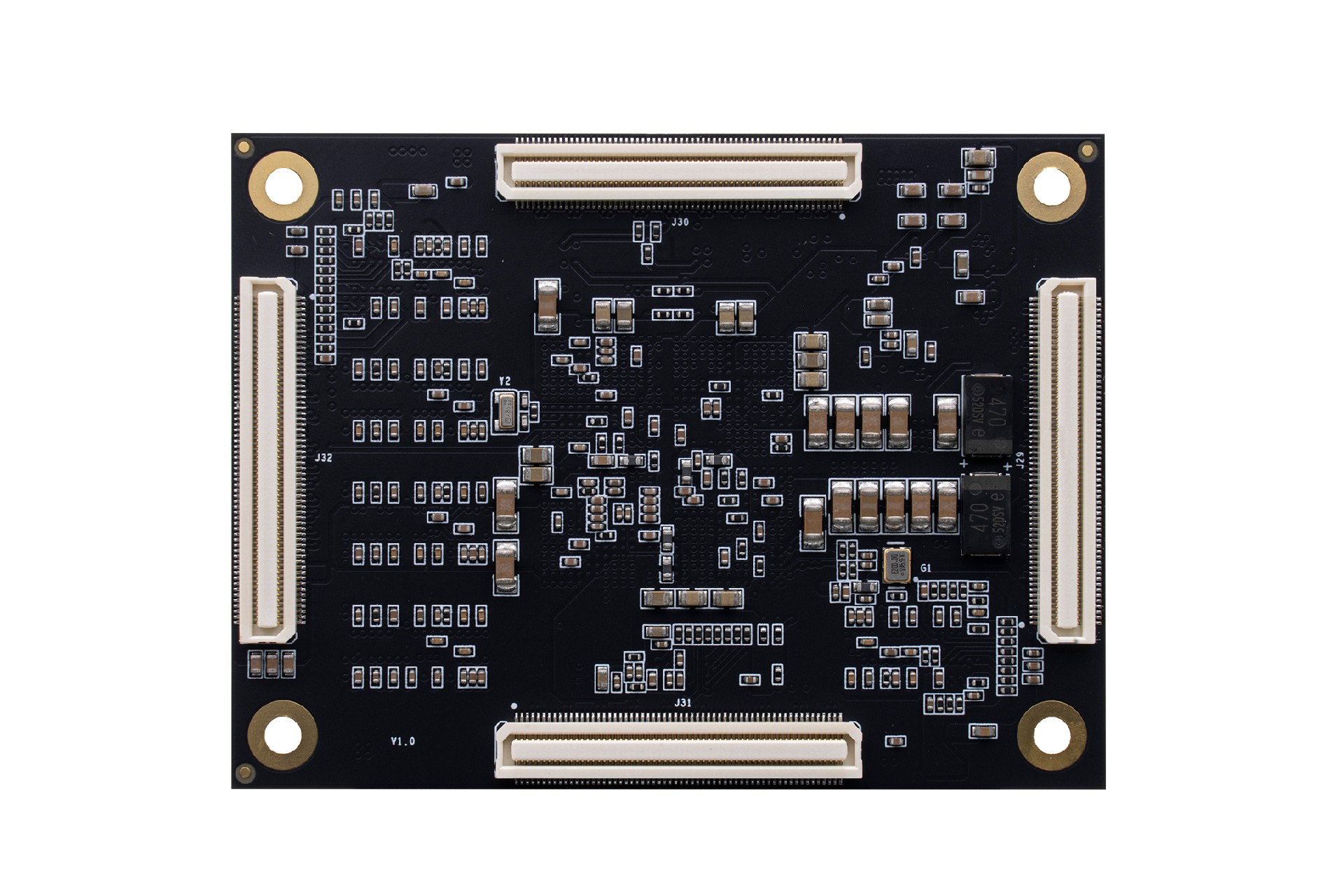

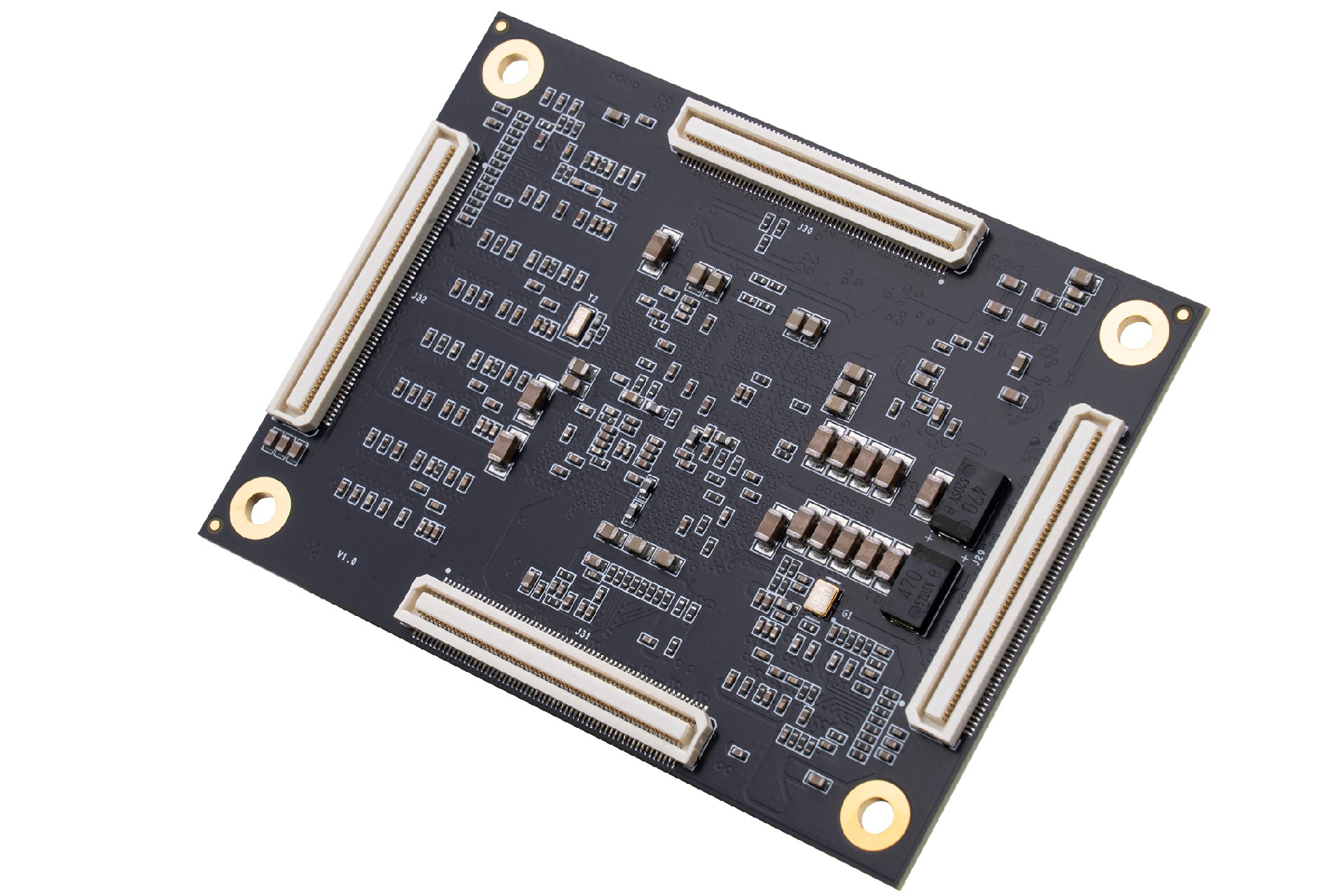

| Connector | 4 × 120-pin Panasonic connectors |
Power specifications
| Input voltage | 12V power supply |

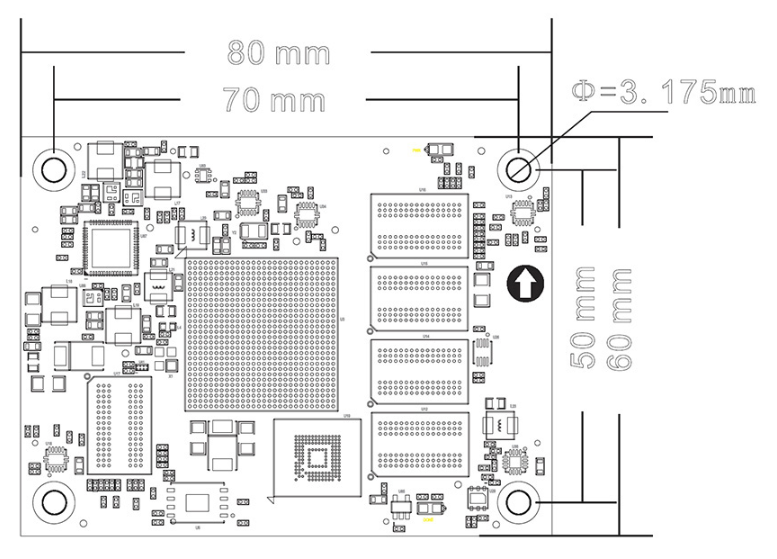

Mechanical dimensions
| Dimensions | 80MM x 60MM x 7.1MM |
