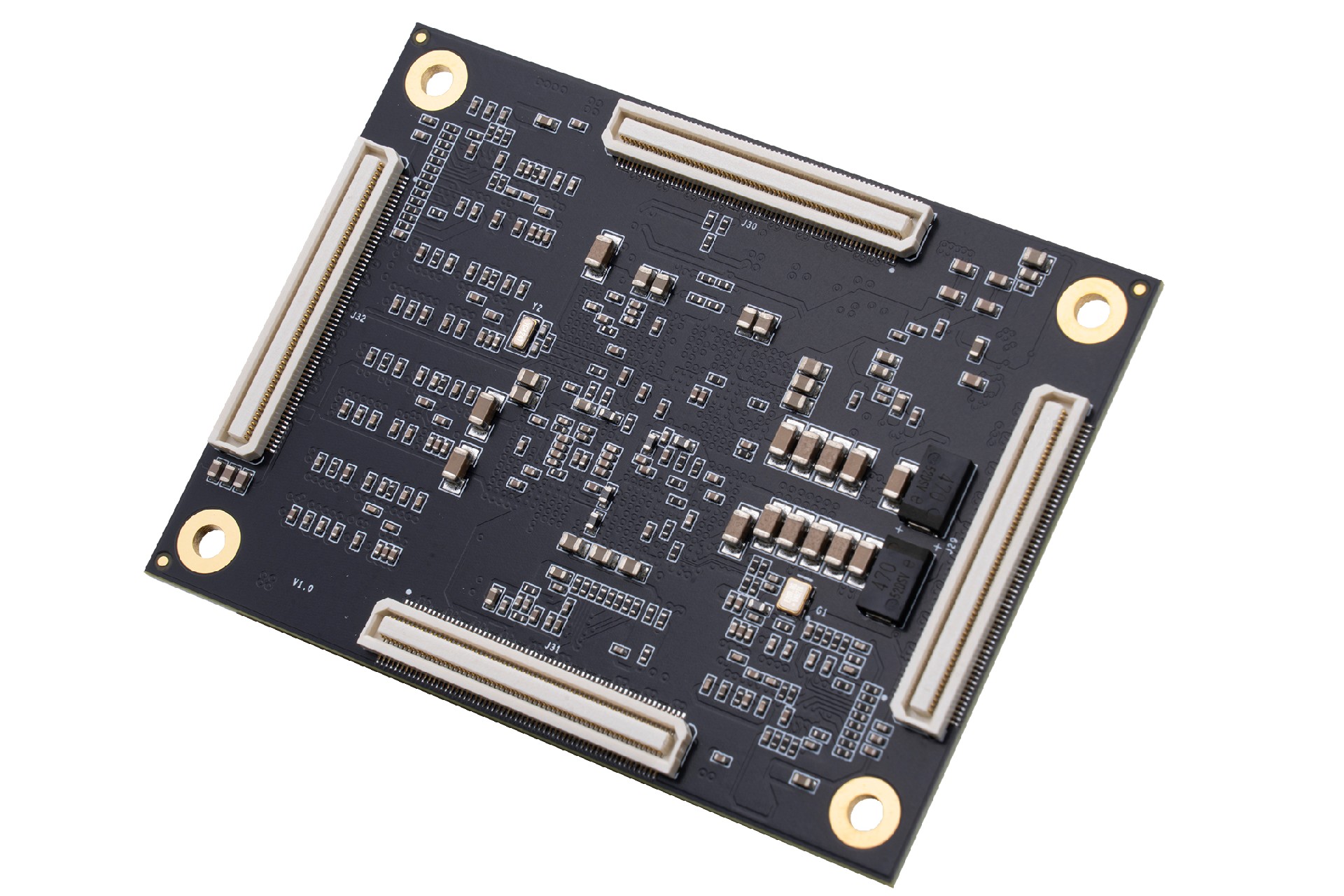

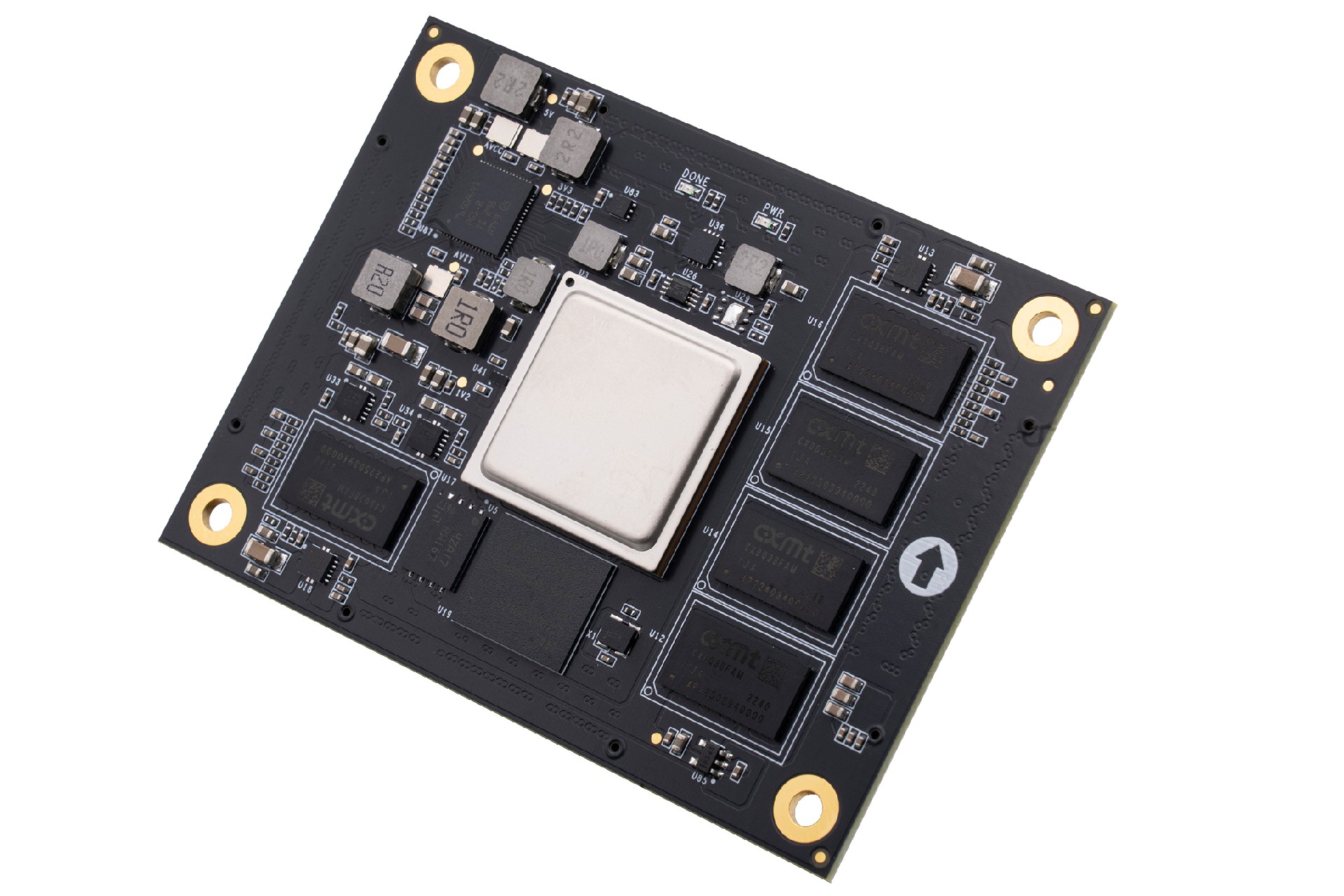

PIPEBLUE-AMD SoC SoM
Mali-400 MP2 GPU combined with 16nm FinFET+ programmable logic, integrated H.264/H.265 video codec supporting up to 4K×2K (60fps) video, making it an ideal choice for multimedia, automotive ADAS, surveillance, AI intelligence, cloud computing, high-speed data exchange and storage, and other embedded vision applications.
Quad-core ARM Cortex-A53 + Dual-core ARM Cortex-R5
5GB DDR4
Mali™-400 MP2 GPU
32GB eMMC FLASH，32MB QSPI FLASH

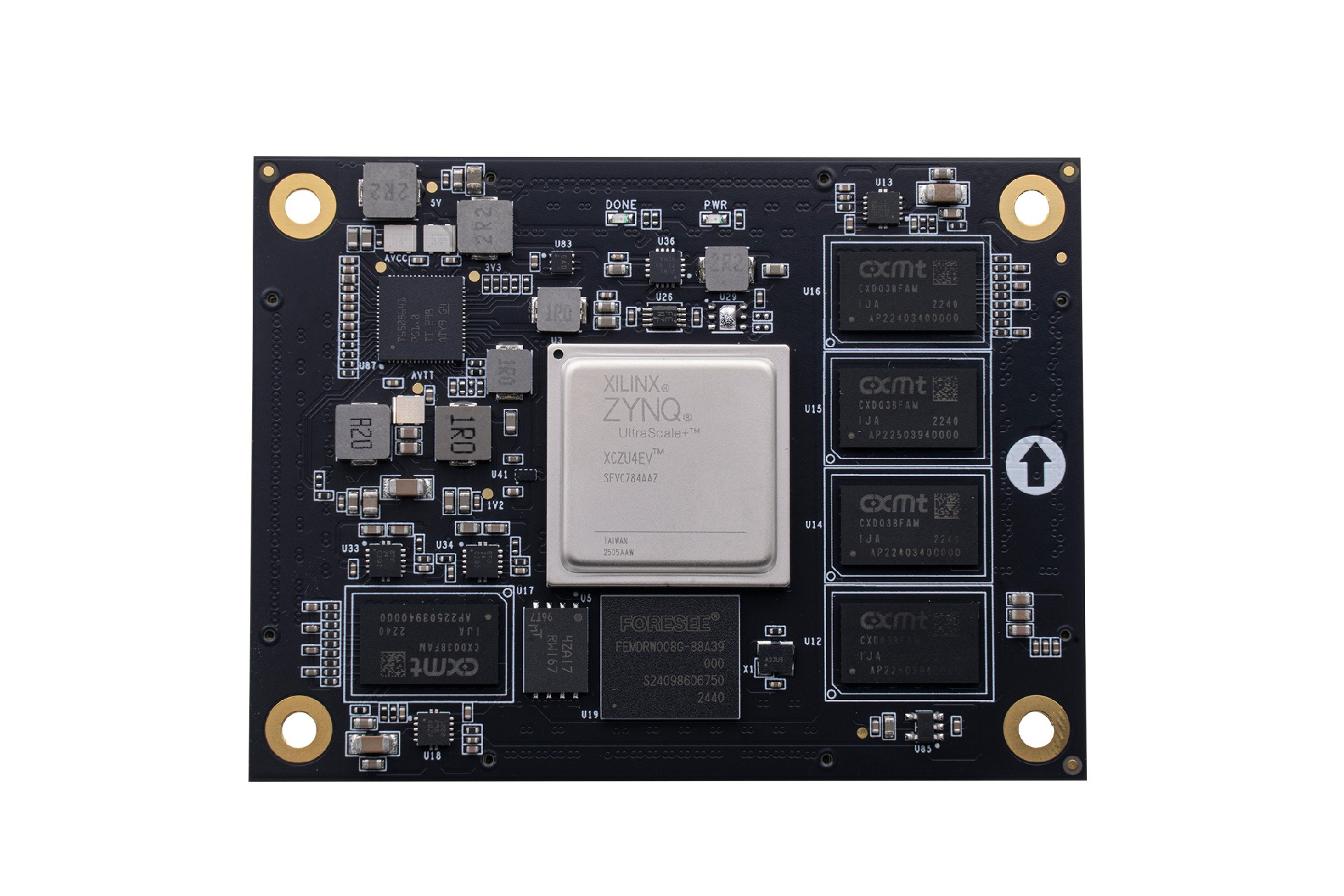

Key Specifications of the Core Board
| SoM | PBC4EV |
| FPGA Chip Model | XCZU4EV-1SFVC784I |
| ARM | Quad-core ARM Cortex-A53 + Dual-core ARM Cortex-R5,500 MHz |
| GPU | Mali™-400 MP2 GPU |
| PS DDR | DDR4 4GB |
| PL DDR | DDR4 1GB |
| Chip Grade | Industrial grade; operating temperature: -40°C to 85°C |
| Logic Cells | 192K |
| LUTs | 88K |
| Flip-Flops | 176K |
| DSP | 728 |
| Block RAM | 4.5Mbit |
| HP I/O | 96 |
| HD I/O | 84 |
| PL PCIe | PCIe Gen3 x4 |
| GTH | 12.5Gb/s x4 |
Functions and Interface Specifications

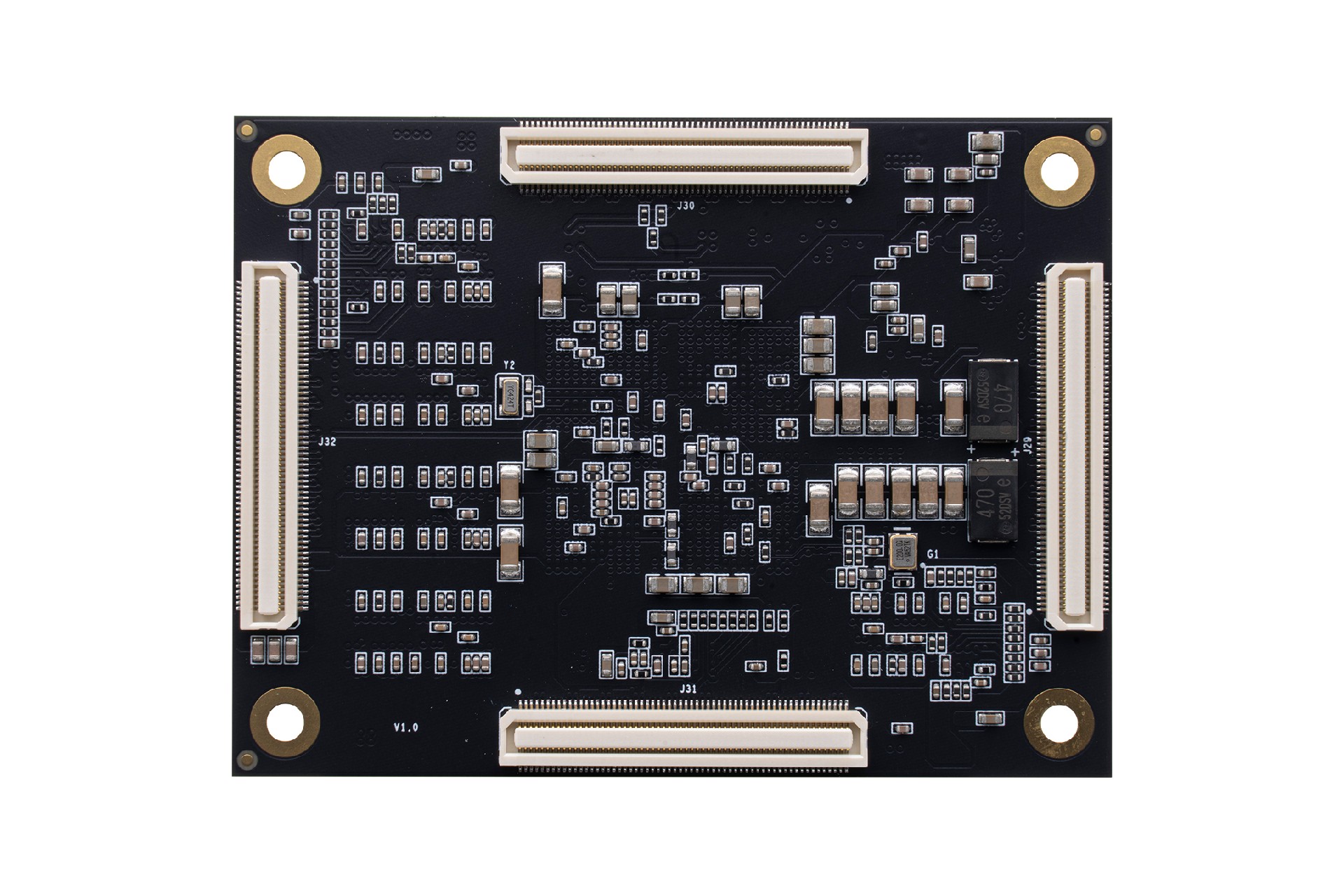

| VCU | 1 × Video Codec Unit (VCU) with integrated H.264/H.265 video encoder/decoder |
| eMMC FLASH | 32GB eMMC Flash chip for boot configuration and system file storage |
| PS high-speed interface | PCIe Gen2 x4，2x USB3.0，SATA 3.1，DisplayPort，4x Tri-mode Gigabit Ethernet |
| PS standard interface | 2x USB 2.0，2x SD/SDIO，2x UART，2x CAN 2.0B，2x I2C, 2x SPI，4x 32b GPIO |
| QSPI FLASH | 32MB QSPI Flash, used for FPGA user data storage |
| Crystal oscillator | 1 × 33.333 MHz crystal oscillator for PS clock input 1 × 200 MHz differential crystal oscillator for PL system clock and DDR4 controller reference clock |
| Connector | 4 × 120-pin Panasonic connectors |
Power specifications
| Input voltage | 5V power supply |
Mechanical dimensions

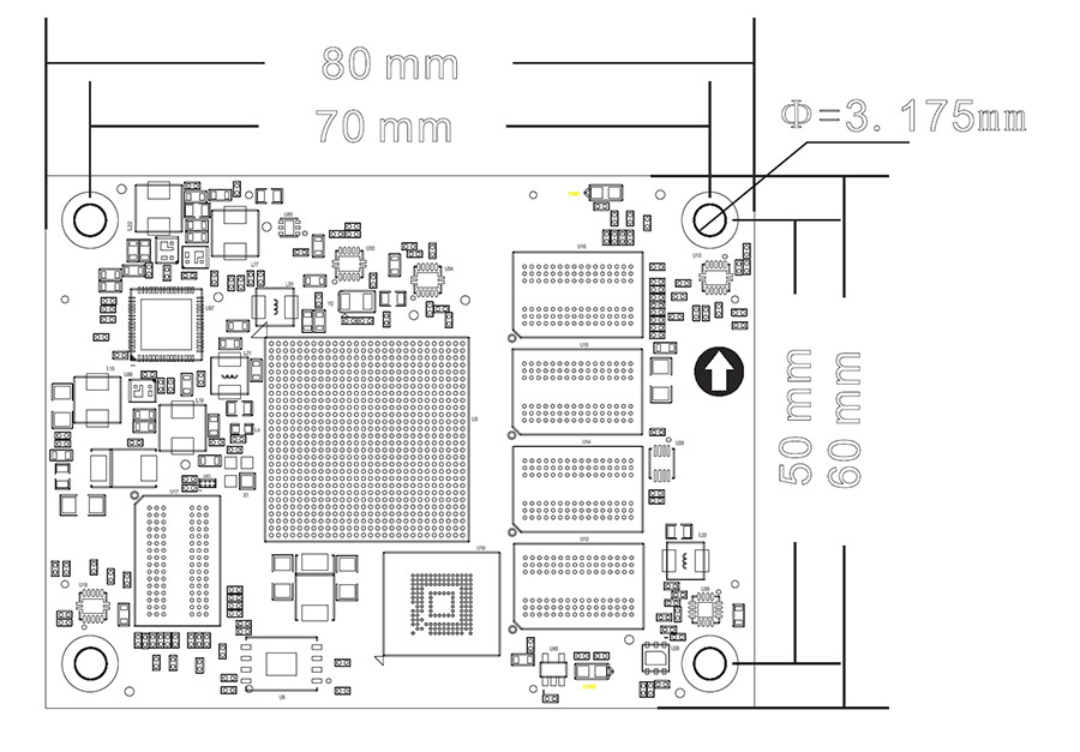

| Dimensions | 80MM x 60MM x 7.1MM |
